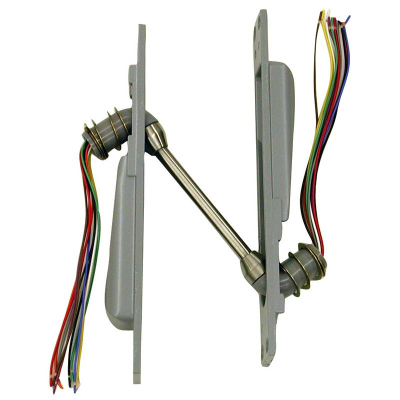

Von Duprin Electrical Power Transfer Device

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

Von Duprin Electrical Power Transfer Device

SKU:
VON EPT
Part #:
Model:
VON100EPT10SP28
$469.55 - $519.42

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Adding to cart… The item has been added

Product Overview

Electric Power Transfer provides a means of transferring electrical power from a door frame to the edge of a swinging door. The units are completely concealed when the door is in the closed position, and are ideal for installations involving abuse or heavy traffic. The EPT-10 has ten 24 gauge wires; up to 1AMP@24VDC with a 16 AMPS maximum surge. The EPT-2 has two 18 gauge wires; up to 2AMPS@24VDC with a 16 AMPS maximum surge. The power transfers are U/L listed as "miscellaneous door accessory." UL Listed for use on fire doors.

Specifications

  • Application
    For Electrified Exit Devices
  • BAA Compliant
    Yes
  • Country of Origin
    China
  • Electrical Rating
    24 VDC
  • Fire Rated
    Non Rated
  • Grade
    Grade 1
  • Material
    Aluminum
  • Metric Size
    229mm x 32mm x 38mm
  • Rated Opening Compliant
    Yes
  • Size
    9" x 1-1/4" x 1-5/8"
  • Standards
    UL Listed, cUL Listed, ANSI 156.3
  • Unit of Measure
    Each
  • Use With
    Up to 5" butt hinges-180deg swing; 5-1/2" butt hinges-130deg swing, 6" butt hinges-110deg swing, 3/4" butt offset pivots-180deg swing
