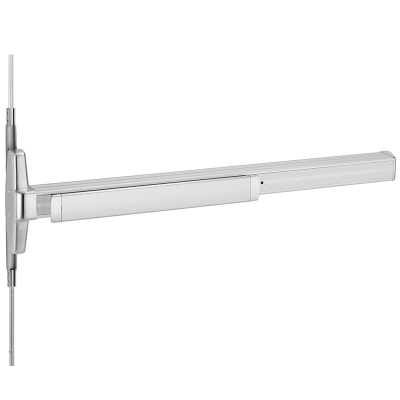

Von Duprin 3347/3547 Concealed Vertical Rod Exit Device, Electric

Von Duprin 3347/3547 Concealed Vertical Rod Exit Device, Electric

SKU:
VON EL3347
Part #:
Model:
VON100QEL3347AEO326D
$3,228.34 - $3,281.77

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Adding to cart… The item has been added

Product Overview

The 33/35 A Series devices are narrow stile heavy-duty push pads. Architectural design elements differ slightly between the 33A and the 35 A. The 35 A Series device has a smooth mechanism case, while the 33A Series has a grooved mechanism case. The 33/35 A Series have all been certified to the highest industry standards and are used in schools, hospitals and government buildings. The breadth of available options allows for tailoring to any facility's needs. A variety of field-configurable options available. Retrofit kits available to keep up with changing technology. Device has a one piece center case cover. Vertical rods are round, 2 piece adjustable; top rod adjustable from 6'8" to 8'4". Being electric allows for the remote unlatching of exit devices. A control station operator can flip a switch to retract the latch bolt and immediately change an exit door to push-pull operation. The EL option offers powerful, continuous duty solenoid retracts the latch bolt, either for momentary unlatching, or for extended periods of time. Different than the popular EL, the QEL quiet operation is achieved using an electric drive motor which retracts the latch bolt either momentary unlatching or for extended periods of time. This feature is an alternative to manual dogging. These devices are also useful with automatic door operators, and may be applied to fire-rated applications when under the control of an automatic fire alarm system. UL approved for Class II circuit applications. This option does not include the power transfer from door to frame, the power supply, or the control operator. Refer to EPT-2 power transfer and the PS914 power supply.

Warranty Information

3 Years Limited

Specifications

  • Application
    For High Use and Abuse in Institutional Like Schools, Hospitals and Government Facilities
  • Bolt
    Deadlocking anti-friction top and bottom bolt, 3-3/4 x 1-1/2 x 1"
  • Bolt Throw Length
    5/8" (16mm)
  • Country of Origin
    USA
  • Device Type
    Concealed Vertical Rod
  • Dogging Options
    Electric Dogging
  • Door Height
    80-100 In.
  • Door Material
    Hollow Metal
  • Door Thickness
    1-3/4" - 2-1/4"
  • Door Width
    26 In. - 36 In.
  • Duty Weight/Class
    Heavy Duty
  • Fire Rated
    Non Rated
  • Function
    Exit Only
  • Grade
    Grade 1
  • Hand
    Non-Handed
  • Includes
    Electric Latch Retraction
  • Material
    Aluminum
  • Mounting Location
    Door
  • Power
    Hardwired
  • Power Transfer/Wires
    Not Included
  • Projection
    3-13/16" Pushbar Neutral x 3-1/16" Pushbar Depressed
  • Rated Opening Compliant
    No
  • Standards
    ANSI/BHMA A156.3 2014 Grade 1, ANSI/UL10C (Fire Rated Only), ANSI/UL305, CAN/ULC-S104 (Fire Rated Only), CAN/ULC-S132
  • Stiles
    1-3/4" Wide
  • Strike Bottom
    385A
  • Strike Top
    338
  • Trim
    not included
  • Type
    Narrow Stile Pushpad
  • Unit of Measure
    Each
  • Voltage
    24 VDC
