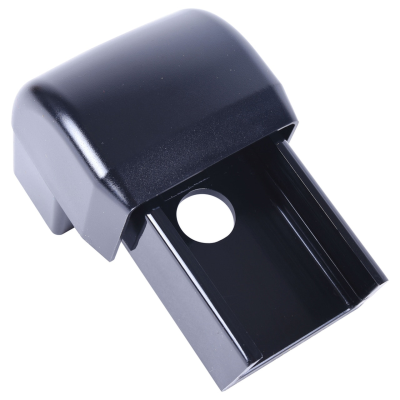

Securitron TSB Touch Sense Bar Mounting Base and End Caps, 36"

SKU:
TSB-BCA
Part #:
Model:
TSB-BCA
Was: $93.00
Now: $63.11

(No reviews yet) Write a Review
Adding to cart… The item has been added
California Prop 65 Warning

Product Overview

The Touch Sense Bar(TSB) provides touch-triggered release of magnetically locked, non-fire-rated doors. Touching the bar, even through light gloves or clothing, triggers and electronic sensor that releases the lock. For indoor use only, the TSB installs easily on all types of metal, aluminum or wood frame doors. Meets "no special tools or knowledge" criteria in code requirements. Can be field cut to accommodate non-standard openings. Activates a DPST 2 A Rated relay when touched (no mechanical movement) which will allow free egress, or initiates the delay on an exit delay timer (not included). Backup push button included. A 16' (4.8 m) 22 AWG 6 conductor cable and armored door cord included. Operates on either 12/24 VDC.

Warranty Information

Limited Lifetime

Specifications

  • BAA Compliant
    Yes
  • Burglar Rated
    No
  • Button Text
    PUSH TO EXIT
  • Color
    Black
  • Country of Origin
    USA
  • Device Type
    Active Dummy with Switch
  • Door Width
    36"
  • Fire Rated
    Non Rated
  • Function
    Provides touch-triggered release of electronically locked, non-fire-rated doors
  • Hand
    Non-Handed
  • Height
    3"
  • Length
    34-1/2"
  • Material
    Aluminum
  • Mounting Location
    Indoor
  • Mounting Style
    Surface
  • Operating Temperature
    32-110 deg F (0-43 deg C)
  • Power
    Hardwired
  • Projection
    3"
  • Rated Opening Compliant
    No
  • Standards
    UL 294, CSA-C22.2 No. 205, CSFM, CE: EN 50091-1, EN 61000-6-2,
  • Unit of Measure
    Each
