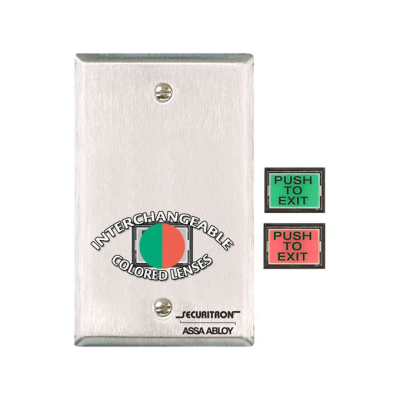

Securitron PB3 Series Push Button, Red/Green, Satin Stainless Steel

SKU:
SEC PB3
Model:
SEC100PB3
$63.42 - $84.80

In Stock

(No reviews yet) Write a Review
Adding to cart… The item has been added
California Prop 65 Warning

Product Overview

High quality Securitron Push Buttons are available in a broad selection of colors, sizes, switch types and outputs. With a wide range of options for interchangeable lenses and field convertible outputs, Securitron push buttons can release any lock, alone or in conjunction with door closers and other hardware.

Warranty Information

Limited Lifetime

Specifications

  • BAA Compliant
    Yes
  • Burglar Rated
    No
  • Button Text
    EXIT
  • Contact Rating
    3 A rated contacts
  • Contact Type
    Field convertible from DPST to DPDT
  • Country of Origin
    USA
  • Electrical Rating
    12/24 VDC
  • Fire Rated
    Non Rated
  • Function
    Door Release
  • Hardware Finish
    Satin Stainless Steel 630/US32D
  • Includes
    Interchangeable Green and Red Lenses
  • Lights
    LED
  • Material
    Stainless Steel
  • Operating Temperature
    32-110 deg F (0-43 deg C)
  • Power
    Hardwired
  • Rated Opening Compliant
    No
  • Size
    1" x 1-3/4" Button
  • Unit of Measure
    Each
  • Voltage
    12 or 24 VDC (field selectable)
  • Volts/Amps
    29 mA @ 12 VDC / 40 mA @ 24 VDC
  • Weight
    0.5
