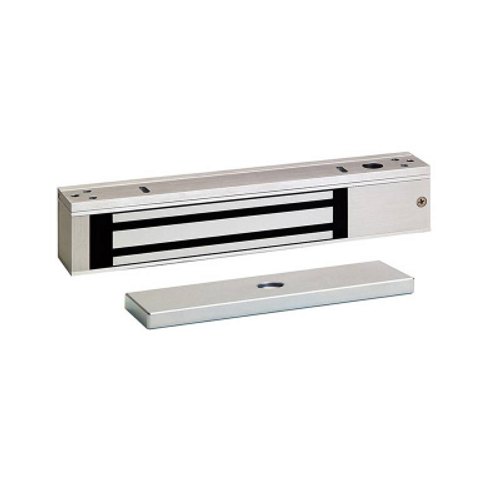

SDC Excel E1200 Magnetic Lock, 1200lbs, Satin Aluminum

SKU:
E1200
Part #:
Model:
SDCE1200
Was: $298.00
Now: $232.44

(No reviews yet) Write a Review
Adding to cart… The item has been added

Product Overview

Economically priced alternative to low-cost imports. Quality and flexibility for Commercial Applications. The Excel product line is designed for system integrators, distributors, installers and building owners presently using low-cost import or private label brand access control hardware. The Excel Series fully featured magnetic locks are easier to install and provide superior, less obtrusive appearance compared to stainless steel epoxy sealed magnetic locks. Full monitoring is standard. The quick mount assembly reduces installation time compared to epoxy sealed magnetic locks. Door and lock status outputs included for remote monitoring, mantraps and system application needs.

Warranty Information

Limited Lifetime

Specifications

  • Additional Information
    Magnetic lock for perimeter and interior door security and access control
  • Application
    Security Access Control and Mantraps
  • Armature Size
    7-5/16"L x 2-3/8"H x 5/8"D
  • Contact Rating
    Lock Status Contact SPDT, 2 Amp @ 30VDC; Door Status Contact SPDT, 250 mA @ 30VDC
  • Contact Type
    SPDT
  • Doors
    Single
  • Electrical Rating
    500 mA @ 12 VDC, 250 mA @ 24 VDC
  • Grade
    Grade 1
  • Hardware Finish
    Satin Aluminum, Clear Anodized 628/US28
  • Holding Force
    1200 lbs.
  • Includes
    Adjustable mounting bracket with choice of self drilling and tapping mounting screws or machine screws
  • Lights
    Bi-color LED
  • Mounting Style
    Surface
  • Power
    Hardwired
  • Power Transfer/Wires
    PC board with voltage and current spike protection, instant release anti-residual magnetism circuit, terminal block for power input and status outputs
  • Series
    Excel Series
  • Size
    Lock 10-1/2"L x 2-7/8"H x 1-5/8"D
  • Standards
    UL Listed
  • Unit of Measure
    Each
  • Voltage
    12VDC/24VDC Field Selectable
  • Weight
    10
