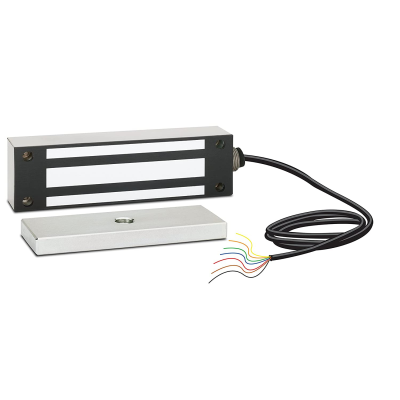

SDC 1575/76 Electromagnetic Gate Lock, 1200lb Holding Force
SDC 1575/76 Electromagnetic Gate Lock, 1200lb Holding Force

Let us build your organization a custom and personalized buyer portal.

Learn More

Standardize materials and improve the purchasing process for your facilities.

SDC 1575/76 Electromagnetic Gate Lock, 1200lb Holding Force

SKU:
SDC 1575/76
Part #:
Model:
SDC1575U
Was: $539.00
Now: $420.42

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Reset Selections

Adding to cart… The item has been added

Related Products

Product Overview

SDC's magnetic gate locks provide 1200lbs of holding force and enable the access and egress control of pedestrian and vehicle gates. Access controls such as card readers, digital keypads and remote control stations provide gate and lock control.

Compatible with manual and automatic, swinging and sliding, tubular and iron gates. The floating armature design compensates for gate misalignment with the electromagnet.

SDC magnetic gate locks are totally sealed in an epoxy filled stainless steel case. A threaded conduit fitting ensures weather resistant protection of the wiring.

Resources

Warranty Information

1 Year Limited

Specifications

  • Additional Information
    Conduit Fitting: 1/2" Length, 3/4" outside thread, 1/2" inside thread
  • Armature Size
    7-3/4"L x 2-13/32"H x 5/8"D
  • Contact Rating
    SPDT, 250mA @ 30VDC
  • Contact Type
    SPDT
  • Country of Origin
    USA
  • Electrical Rating
    450 mA @ 12 VDC, 225 mA @ 24 VDC
  • Failure Mode
    Fail Safe
  • Grade
    Grade 1
  • Hardware Finish
    Satin Stainless Steel 630/US32D
  • Holding Force
    1200 lbs.
  • Includes
    Door Position Sensor, Magnetic Bond Sensor
  • Material
    Stainless Steel
  • Operating Voltage
    12VDC/24VDC
  • Power
    Hardwired
  • Power Transfer/Wires
    Leads: 24 AWG, 3ft. Long
  • Size
    Lock: 8-11/16"L x 2-1/2"H x 1-5/8"D
  • Standards
    UL, CSFM, MEA Listed
  • Type
    Weatherized
  • Unit of Measure
    Each
  • Weight
    10 lbs
