SDC 1590 Electromagnetic Sliding Door Locks

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

SDC 1590 Electromagnetic Sliding Door Locks

SKU:
SDC 1590
Part #:
Model:
SDC1591U
$331.50 - $383.76

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Adding to cart… The item has been added

Product Overview

SDC's 1590 series electromagnetic sliding door locks are compact locks with 850lbs of holding power packed into a small steel mortise case. The lock is ideal for securing sliding or swinging, manual or automatic doors. Its durability for high frequency use and its mortise installation make it the choice of specification writers, owners and architects.

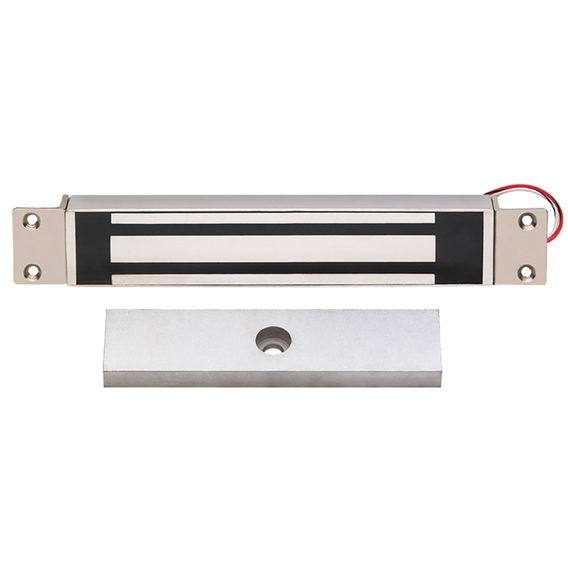

With only two parts, the lock mortised in the frame and the armature in the door, the lock secures the door in a closed position. When power is cut the lock releases instantly.

Resources

Warranty Information

5 Years Limited

Specifications

  • Application
    For securing sliding or swinging, manual or automatic doors
  • Armature Size
    6-5/16" x 1-1/2" x 1/2"
  • Contact Rating
    250 mA @ 30 VDC Resistive
  • Contact Type
    SPDT
  • Country of Origin
    USA
  • Doors
    Sliding or Swinging (Single)
  • Electrical Rating
    350 mA @ 24 VDC, 700 mA @ 12 VDC
  • Grade
    Grade 1
  • Hardware Finish
    Satin Stainless Steel 630/US32D
  • Holding Force
    850 lbs.
  • Material
    Stainless Steel Housing
  • Mounting Style
    Mortise
  • Power
    Hardwired
  • Size
    10" x 1-7/16" x 1-1/4" Housing
  • Standards
    UL 1034, UL 10B, UL 10C, ULC-S104, ULC-S533, ANSI/BHMA A156.23
  • Unit of Measure
    Each
  • Voltage
    12VDC/24VDC Field Selectable
  • Weight
    5 lbs.
