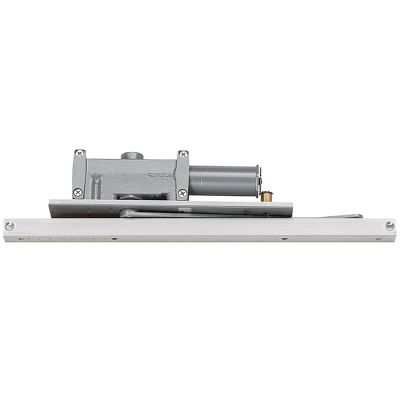

LCN 2010 Series Heavy Duty Door Closer

LCN 2010 Series Heavy Duty Door Closer

SKU:
LCN 2010
Part #:
Model:
LCN1002011STDLHAL
Was: $908.00
Now: $681.00

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Adding to cart… The item has been added

Product Overview

The concealed 2010 Series is a heavy duty closer designed to provide complete concealment. The single lever arm and roller assembly provide smooth, quiet door control. The 2010 Series is concealed in the door frame with the track concealed in the door. The aluminum frame requires minimum 4"x4" tube for mounting. Featuring a cast iron body with a full compliment bearing, 1-1/2" diameter piston, 11/16" diameter double heat treated pinion journal. Select closer based on width of door. 2010 Series cylinders available in size 1, 3, 4, 5 or 6. Closing power of all 2010 Series closers may be increased 15 percent. Specify next higher size closer where strong drafts exist.

Warranty Information

15 Years Limited

Specifications

  • ADA Compliant
    Yes
  • Arm Type
    Slide Track Arm Standard
  • BAA Compliant
    Yes
  • Cold Weather Fluid
    Yes
  • Country of Origin
    USA
  • Degree Swing
    180 Deg.
  • Door Material
    Aluminum, Hollow Metal or Wood
  • Door Thickness
    1-3/4" Minimum
  • Duty Weight/Class
    Heavy Duty
  • Fasteners
    Wood and Machine Screws (WMS)
  • Grade
    Grade 1
  • Hold Open
    No
  • Includes
    Standard Cylinder with Finish Plate, Standard Arm, Standard Track
  • Mounting Location
    Door Frame Header / Door
  • Mounting Style
    Concealed
  • Operating Temperature
    -30 to 120 degrees F (-35 to 49 degrees C)
  • Power
    Hydraulic Technology
  • Rated Opening Compliant
    Yes (if NOT hold open)
  • Series
    2010 Series Concealed Door Closer
  • Standards
    ANSI A156.4, UL10C, 100 hr Salt Spray
  • Type
    Concealed Overhead, Standard Track
  • Unit of Measure
    Each
  • Weight
    13
