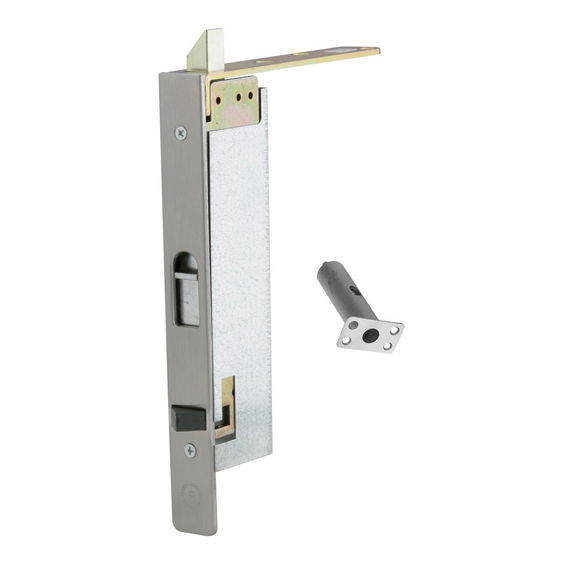

Ives FB62 Constant Latching Flush Bolt, Top Only w/ Aux Fire Latch, Wood Door

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

Ives FB62 Constant Latching Flush Bolt, Top Only w/ Aux Fire Latch, Wood Door

SKU:
IVES FB62
Part #:
Model:
IVE100FB62WDUS10
Was: $331.50
Now: $218.79

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Adding to cart… The item has been added
California Prop 65 Warning

Product Overview

Flush bolts can be used on doors that need to be secured without having a mullion or wall for latching. Flush bolts are usually used on a pair of double doors, like a large closet in a commercial building or French doors. These doors may have a lock, but the flush bolts allow one door to be anchored to the top of the door and the floor. The other door can then latch to the anchored door and keep the opening secure when not in use. Flush bolts are recessed into the top and bottom of the door edge and slide upward or downward into the jamb or threshold to keep the door secure and closed. Fully automatic, inactive door is latched, bolts are extended when active door closes, door is unlatched, bolts retract when active door is opened. Low actuation forces, top bolt has no spring tension. Fits standard ANSI A115.4 door and frame preparations. Bolt throw is 3/4" with a 7/8" vertical adjustment. UL Listed 3 Hour fire doors 8'0" X 8'0".

Specifications

  • Action
    Inactive door is latched, bolts are extended when active door closes, door is unlatched, bolts retract when active door is opened
  • Backset
    3/4"
  • Bolt Throw Length
    3/4" with a 7⁄8" vertical adjustment
  • Door Material
    Wood
  • Function
    For double doors allowing one door to be anchored to keep the opening secure when not in use.
  • Hand
    Non-Handed
  • Includes
    Mounting Hardware
  • Latch Type
    Auxiliary Fire, 1-3/4"L x 1"W x 3-1/4"D
  • Mounting Location
    Top Door Edge/Jamb
  • Rated Opening Compliant
    Yes
  • Screws
    8-32X3/8"UFPHMS, 10-12X1-1/4"Plastic anchor, 6-32X3/8"FPHMS, 6X3/4"FPHSMS, 8X1"FPHSMS, 10X1"FPHSMS
  • Size
    Body 1"W x 8-1/2"L x 2"D
  • Standards
    UL10C Listed (20 min) fire doors 8'0" x 8'0"
  • Strike Size
    2-1/4"L x 15/16"W x 1/16"D
  • Through Bolts
    No
  • Type
    Constant Latching, Top with Auxiliary Fire Latch
  • Unit of Measure
    Each
