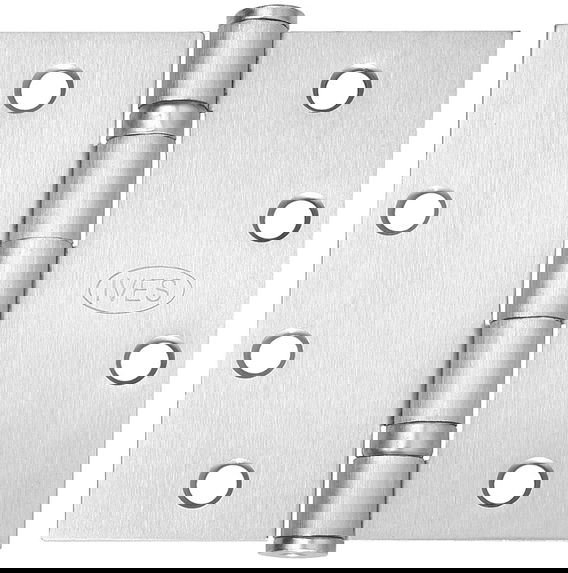

Ives 5BB1 Hinge, Full Mortise, Ball Bearing

SKU:
IVES 5BB1
Model:
IVE1005BB13.5X3.5619
$10.08 - $72.17

In Stock

(No reviews yet) Write a Review
Adding to cart… The item has been added
California Prop 65 Warning

Product Overview

Ives offers a variety of architectural hinges that will cover any need commercial application while also exceeding code requirements. With tested durability and consistent superior performance, Ives architectural hinges get the job done. Recommended for medium weight doors (<150 lb). Recommended for medium frequency usage (<400 cycles per day). Made with two ball bearing assemblies. Recommended for use with a door closer. Packed with fasteners for hollow metal and wood doors. UL listed for 3 hour fire door; UL classified for windstorm rated assemblies (R37965).

Specifications

  • Application
    Recommended for medium frequency usage (<400 cycles per day)
  • Bearing Type
    Ball Bearing
  • Door Height
    Under 7'6" require 3 hinges; Over 7'6" require 4 hinges
  • Door Material
    Wood or Hollow Metal
  • Door Thickness
    1-3/4"
  • Door Width
    Up to 36"
  • Duty Weight/Class
    Standard Duty
  • Grade
    Grade 2
  • Hand
    Non-Handed
  • Height
    3-1/2"
  • Hinge Type
    Full Mortise Hinge
  • Knuckles
    5
  • Rated Opening Compliant
    Yes
  • Screws
    12-24 x 1/2 UFPHMS, 12 x 1 1/4 FPHWS
  • Series
    Ives Architectural Hinges
  • Standards
    ANSI/BHMA A156.1, ANSI/BHMA 156.7
  • Type
    Architectural Hinge
  • Unit of Measure
    Each
  • Width
    3-1/2"
