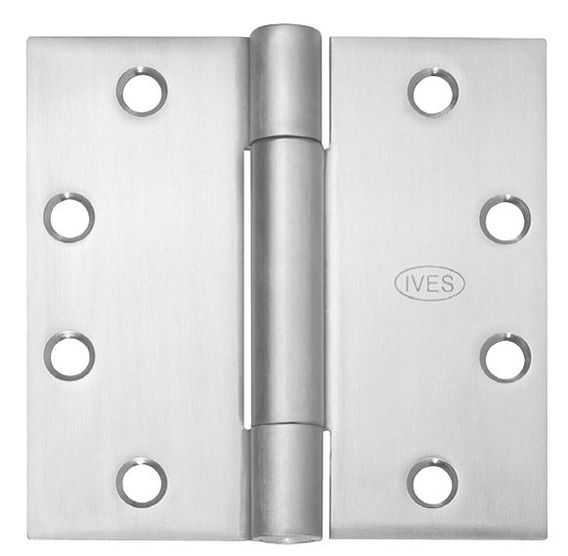

Ives 3CB1 Hinge, Wide Throw, Full Mortise, Concealed Bearing

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

Ives 3CB1 Hinge, Wide Throw, Full Mortise, Concealed Bearing

SKU:
IVES 3CB1WT
Part #:
Model:
IVE1003CB1WT4.5X5.0652
$168.50 - $176.78

Out of Stock

(No reviews yet) Write a Review
  • Out of Stock

California Prop 65 Warning

Product Overview

Ives offers a variety of architectural hinges that will cover any need commercial application while also exceeding code requirements. With tested durability and consistent superior performance, Ives architectural hinges get the job done. Recommended for medium weight doors (<150 lb). Recommended for medium frequency usage (<400 cycles per day). Made with two concealed nylon bearings. Recommended for use with a door closer. Packed with fasteners for hollow metal and wood doors. UL listed for 3 hour fire door; UL classified for windstorm rated assemblies (R37965). **Additional options may be available, inquire via chat.**

Specifications

  • Application
    Recommended for medium frequency usage (
  • Bearing Type
    Concealed Bearing
  • Corner Type
    Square
  • Door Height
    Under 7'6" require 3 hinges; Over 7'6" require 4 hinges
  • Door Material
    Wood or Hollow Metal
  • Door Thickness
    1-3/4"
  • Door Width
    Up to 36"
  • Duty Weight/Class
    Standard Duty
  • Hand
    Non-Handed
  • Hardware Finish
    Satin Chromium Plated 652/US26D
  • Height
    4-1/2"
  • Hinge Type
    Full Mortise Hinge
  • Includes
    none
  • Knuckles
    3
  • Max. Door Weight
    150 lbs.
  • Rated Opening Compliant
    Yes
  • Screws
    12-24 x 1/2 UFPHMS, 12 x 1 1/4 FPHWS
  • Series
    Ives Architectural Hinges
  • Standards
    ANSI/BHMA A156.1, ANSI/BHMA 156.7
  • Tip Style
    Standard
  • Type
    Architectural Hinge
  • Unit of Measure
    Each
  • Use With
    Door Closer
  • Width
    5"
