Hager 5100 Series Heavy Duty Door Closer

SKU:
HAG 5100
Part #:
Model:
126470
$120.33 - $292.02

(No reviews yet) Write a Review
Adding to cart… The item has been added

Product Overview

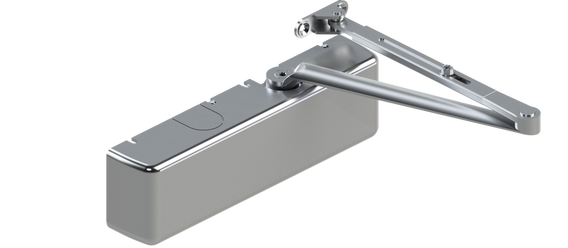

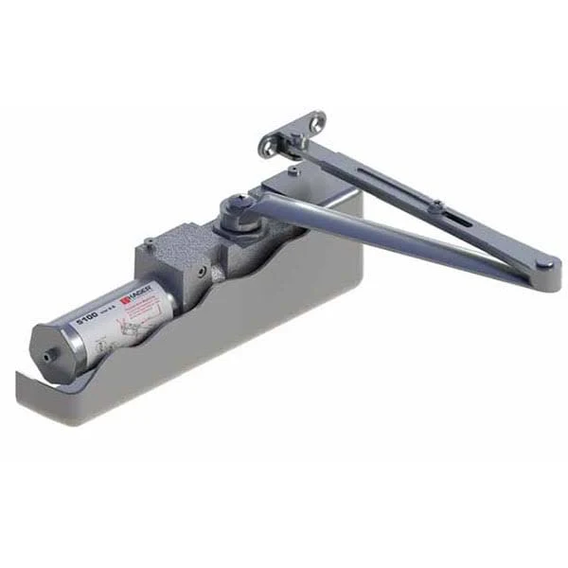

5100 Series Door Closers are heavy duty, constructed of cast iron to be installed on exterior and interior doors that are subject to high use and potential abuse. They have a full rack and pinion operation, with a heat treated steel piston and triple heat treated steel spindle. The closers are non-handed. The sizing is adjustable from size 1 through 6. Hager recommends the use of anti-friction or ball bearing hinges with our door closer products. UL/cUL Listed for up to 3 hours.

Warranty Information

Limited Lifetime

Specifications

  • ADA Compliant
    Yes
  • Application
    Ideal for schools, hospitals, and other high-use environments
  • BAA Compliant
    No
  • Back Check
    Yes
  • Closer Size
    Adjustable 1-6
  • Cold Weather Fluid
    Yes
  • Country of Origin
    China
  • Cover
    Full Plastic
  • Degree Hold Open
    Adjustable where applicable
  • Degree Swing
    Reg and TJ Mount allows up to 120 degree, PA Mount allows up to 180 degree
  • Door Thickness
    1-3/4"
  • Duty Weight/Class
    Heavy Duty
  • Fasteners
    Self-reaming, self-tapping wood and machine screws, Sex nuts and bolts
  • Material
    Cast Iron
  • Max. Door Weight
    330 lbs.
  • Operating Temperature
    -40° F (-42° C) and 150° F (66° C)
  • Rated Opening Compliant
    Yes
  • Rust Inhibitor
    Rust inhibiting primer - Standard
  • Series
    5100 Series Door Closers
  • Standards
    BHMA ANSI A156.4, ANSI A117.1, UL/cUL, UL10C, UL10B, EPN
  • Through Bolts
    Yes
  • Unit of Measure
    Each
  • Weight
    12.76
