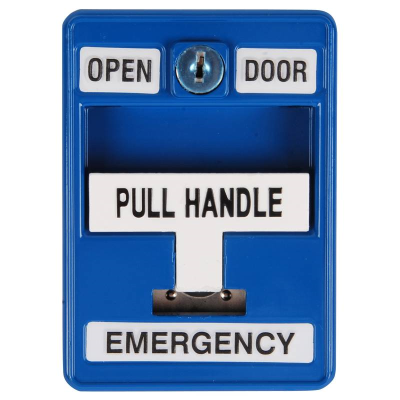

Dortronics 6510 Emergency Pull Station

SKU:
DOR 6510
Model:
DOR1006510BKS35
Was: $185.00
Now: $124.88

In Stock

(No reviews yet) Write a Review
Adding to cart… The item has been added

Product Overview

The 6510 Series of Emergency Pull Stations provide conspicuous signaling or release in case of emergency. These easy to operate stations require a single pull action to actuate. Dual SPDT switches allow connection to an alarm or access control system while simultaneously breaking or making power to a lock or siren using the second set of contacts. Use for emergency exit door release with badge in/out access control systems, or door interlock and mantrap type systems. Two mounting screws are all that's needed to surface mount the 6510. The unit mounts to a standard single gang electrical box. Wiring is accomplished by utilizing the screw terminals on the back of the unit to connect to any system or device. All units are pre-wired, simply cut the wire not needed for a normally open or normally closed contact. Following actuation the pull station is reset by opening the front cover (with the key provided) and installing a new acrylic break rod (sold separately). Close and relock the cover and the 6510 is restored and ready for the next emergency.

Warranty Information

1 Year Limited

Specifications

  • Additional Information
    Pressure sensitive Mylar labels with raised text
  • Application
    For emergency egress
  • Contact Rating
    1 A @ 30 VAC/DC
  • Contact Type
    2 SPDT
  • Country of Origin
    USA
  • Depth
    1"
  • Fire Rated
    Non Rated
  • Height
    5"
  • Includes
    Key for Re-Set, (1) Plexiglass, Break Rod, (2) Mounting Screws
  • Material
    Metal
  • Mounting Style
    Flush or Surface
  • Number of Gang
    1
  • Power
    Hardwired
  • Screws
    Included
  • Standards
    UL Listed
  • Type
    Pull Station
  • Unit of Measure
    Each
  • Use With
    Dortronics 6510/COV
  • Width
    3-5/8"
