Dortronics 6510/COV Anti-Tamper Pull Station Guard, Alarm, Clear/Blue

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

Dortronics 6510/COV Anti-Tamper Pull Station Guard, Alarm, Clear/Blue

SKU:
DOR 6510 COV S/SR
Part #:
Model:
DOR1006510COVSR
$262.50 - $337.50

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Adding to cart… The item has been added

Product Overview

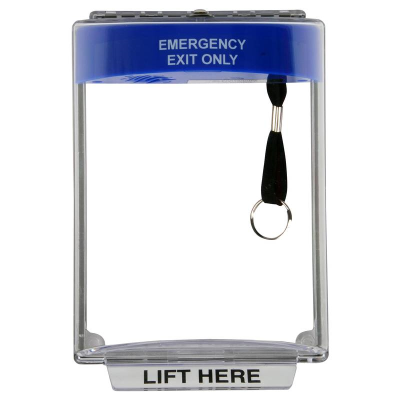

This unique device will deter unauthorized door openings without restricting emergency egress when used with the 6510-S35 Emergency Pull Station. Model 6510/COV/SR in addition to the sounder incorporates a SPDT alarm output for remote monitoring. The anti-tamper alarm cover consists of a clear, tamper proof, super tough polycarbonate shield and frame that fits over the 6510-S35 Emergency Pull Station. When the cover is lifted a local alarm sounds, the horn will sound until the cover is lowered back into the closed position. The 6510/COV/S and /SR covers can operate independently from a standard 9-volt battery or may be powered remotely with 12/24 VDC. The 6510/COV/SR comes with remote wiring capability. The 6510/COV/SR with piezo sounder includes a relay with SPDT contacts which is energized whenever the cover sounder is activated. This output can be used to alert other remote systems.

Warranty Information

1 Year Limited

Specifications

  • ADA Compliant
    Yes
  • Alarm/Siren
    95 or 105 dB, field selectable
  • Application
    Anti tamper cover for 6510 Emergency Pull Station
  • Battery
    9V (included)
  • Color
    Blue
  • Contact Rating
    1 amp @ 30 VAC/VDC
  • Contact Type
    SPDT
  • Depth
    2-1/2"
  • Fire Rated
    Non Rated
  • Height
    6-3/4"
  • Includes
    Piezo Alarm Sounder and SPDT Relay
  • Material
    Polycarbonate, UV-stabilized
  • Operating Temperature
    -40F - 284 deg F
  • Operating Voltage
    12/24 VDC
  • Power
    Battery/Hardwired
  • Standards
    UL Listed
  • Type
    Alarm Cover
  • Unit of Measure
    Each
  • Use With
    Dortronics 6510 Pull Station
  • Width
    4-7/8"
