Command Access ETH Energy Transfer Hinge

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

Command Access ETH Energy Transfer Hinge

SKU:
CAT ETH
Part #:
Model:
COM300ETH2WH45456525SW
$93.00 - $183.00

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Adding to cart… The item has been added

Product Overview

The Energy Transfer Hinge (ETH) is the ideal way to pass low voltage power from the hinge jamb to the lockset without having any exposed wires. These hinges are commonly used with electric mortise and cylindrical locks, electric strikes (when on a pair of doors), electric exit trims, latch pullback devices, door mounted card readers and low voltage door lights. The wire chase should be drilled with a 3/8" drill bit at the point noted on the hinge template. The ETH hinge should always be positioned as one of the center hinges on the door, since the modified hinge no longer meets manufacturers load bearing specifications. A starter hole of 3/4" diameter x 1-1/2" deep is recommended for positioning the hinge wire. In fire rated conditions be sure to confirm the maximum starter hole diameter and depth with the appropriate testing agency.

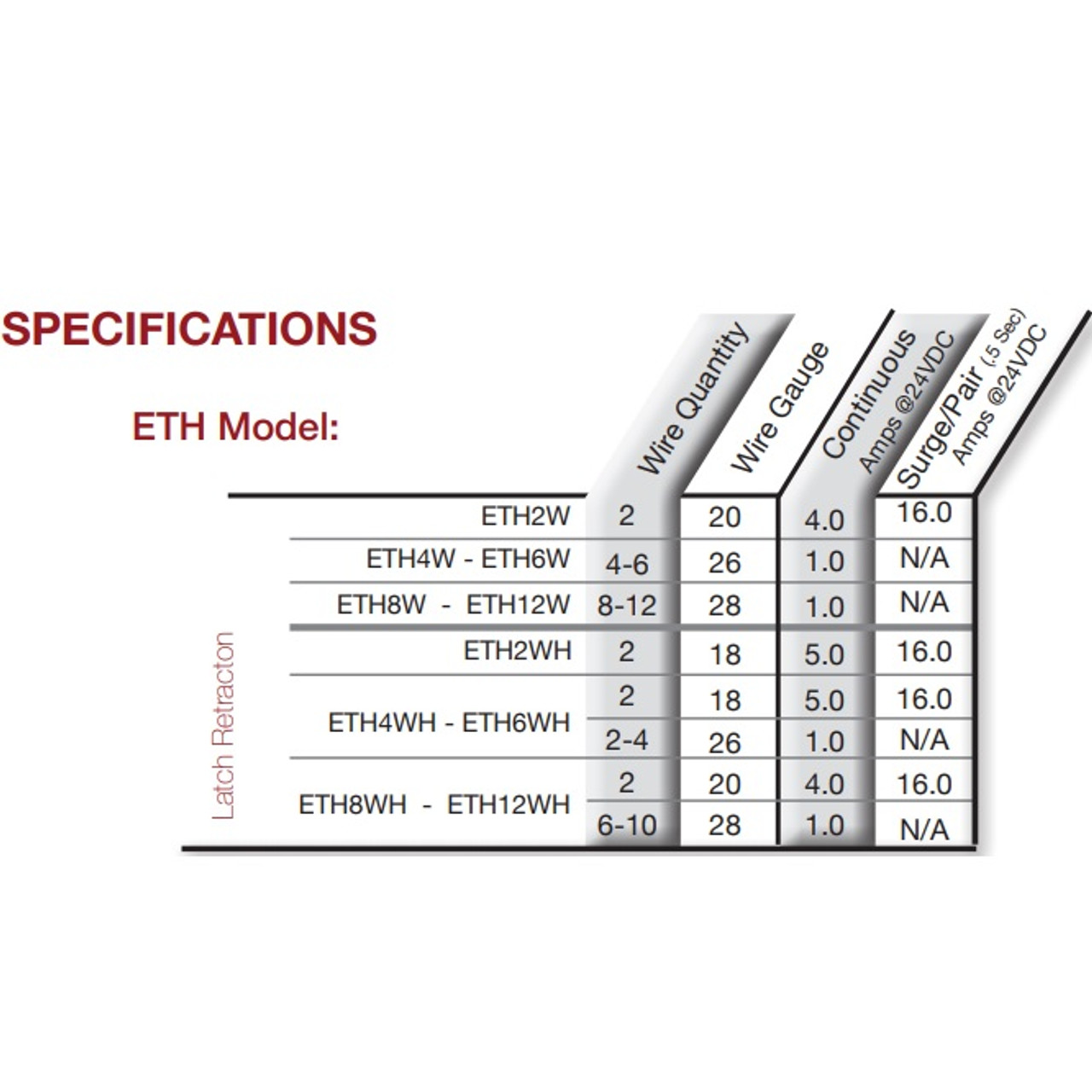

Specifications

  • Bearing Type
    Plain Bearing
  • Contact Rating
    In-rush Current N/C and N/O 0.5 A max
  • Country of Origin
    USA
  • Duty Weight/Class
    Standard Duty
  • Electrical Rating
    Electrical Switch Rating 50-100 mA, 30VDC
  • Function
    Energy Transfer
  • Height
    4.5"
  • Hinge Type
    Full Mortise Hinge
  • Knuckles
    5
  • Mounting Location
    Center hinge on door
  • Pin Type
    (NRP) Non Removable
  • Tip Style
    Standard
  • Unit of Measure
    Each
  • Weight
    1.5
  • Width
    4.5"
