SDC PTH Series Electrified Power Transfer Hinge

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

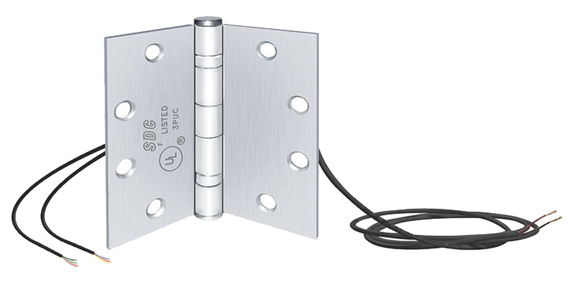

SDC PTH Series Electrified Power Transfer Hinge

SKU:
SDC PTH
Part #:
Model:
SDCPTH10Q
$137.28 - $232.44

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Adding to cart… The item has been added

Product Overview

Electric power transfer hinges provide a concealed and vandal resistant method for running wires from the frame to doors equipped with electric locks and exit devices. In addition to compatibility with other manufacturers electric hardware products, the PTH power transfer hinge may be used with the following SDC products: Electrified Mortise Locksets 7800 Series, Electrified Cylindrical Locksets Z7200 Series, Delayed Egress Exit Devices S6000 Series, Request-to-Exit Bars PSB560 Series, MSB550 Series.

Warranty Information

5 Years Limited

Specifications

  • ADA Compliant
    Yes
  • Additional Information
    800,000 cycles
  • Application
    For Electric Lock Power and Control, Door and Lock Status Signaling
  • Contact Type
    DPS: SPDT; 250 mA @ 30 VDC Resistive
  • Corner Type
    Square
  • Duty Weight/Class
    Standard Duty
  • Hand
    Non-Handed
  • Hardware Finish
    Satin Chromium Plated 626/US26D
  • Height
    4-1/2"
  • Hinge Type
    Full Mortise, Non-Removable Pin Hinge
  • Knuckles
    5
  • Material
    Steel
  • Mounting Location
    Center hinge position of the door
  • Mounting Style
    Full Mortise
  • Pin Type
    (NRP) Non Removable
  • Rated Opening Compliant
    Yes
  • Standards
    UL 10B Listed
  • Tip Style
    Standard
  • Unit of Measure
    Each
  • Use With
    Electrified Mortise Locks; Electrified Cylindrical Locks; Delayed Egress Exit Devices; Electric Trim; Electric Strikes in Pair of Doors
  • Weight
    1.2 lbs
  • Width
    4-1/2"
