Alarm Lock Trilogy DK3000 Digital Access Keypad, with or without Prox Reader

Alarm Lock Trilogy DK3000 Digital Access Keypad, with or without Prox Reader

SKU:
AL DK3000
Model:
ALA100DK3000MS
$482.76 - $910.64

In Stock

(No reviews yet) Write a Review
Reset Selections

Adding to cart… The item has been added

Related Products

Product Overview

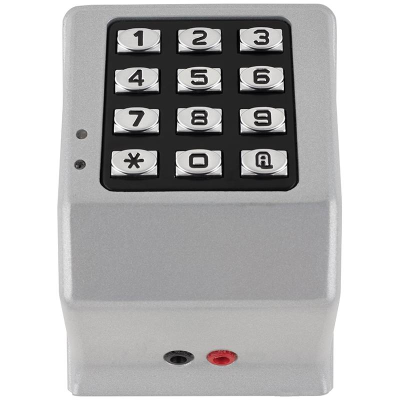

Trilogy weatherproof 12/24VAC/DC digital access control keypads with PC programming and audit trail. Up to 2000 PIN user codes, multilevel security access. Ideal for use with 12/24 VAC/VDC electric door strikes and mag locks. Keypad or PC programmable. 40,000 event audit trail report/print to PC or hand held printer or DTMIII Data Module (sold separately). Vandal-resistant, all metal 12-button keypad. Mount on wall or with single gang box. Timed egress input for selectable door open times 3, 10 or 15 seconds. Up to 500 scheduled events and real time clock. Tamper supervised (reportable to alarm system). Remote release feature; request-to-exit input.

Resources

Specifications

  • Application
    Ideal for elevator and gate applications
  • Country of Origin
    Dominican Republic
  • Electrical Rating
    12-24 VAC/DC
  • Grade
    Grade 1
  • Keypad Type
    12 Button Programmable
  • Keys
    All metal
  • Lights
    LED
  • Material
    Aluminum
  • Mounting Location
    Wall or Single Gang Box
  • Mounting Style
    Surface
  • Number of Gang
    1
  • Number of Users
    2000
  • Operating Temperature
    -31-151 deg F (-35-66 deg C)
  • Power
    Hardwired
  • Programmer/
    Programming
    Keypad or PC programmable
  • Relay
    2 High-Current Rated 8A Relays for entry, alarm zone shunting or lock release by real-time schedule
  • Size
    3-1/4" Width x 1-7/8" Depth x 4-3/4" Height
  • Type
    Digital Access
  • Unit of Measure
    Each
  • Weight
    2.7
