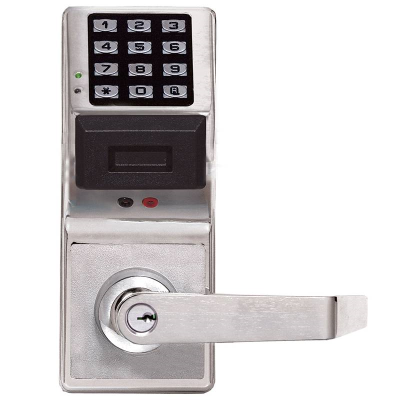

Alarm Lock Trilogy Networx DL6100 Electronic Keyless Access Cylindrical Lock, 5000 Users, with or without Prox Reader

Alarm Lock Trilogy Networx DL6100 Electronic Keyless Access Cylindrical Lock, 5000 Users, with or without Prox Reader

AL DL6100
Part #:
$1,302.42 - $1,649.27

(No reviews yet) Write a Review
Adding to cart… The item has been added

Product Overview

Trilogy networks locks eliminate door-to-door programming and audit trail retrieval by communicating wirelessly via Ethernet or 802.11B/G, while providing all original trilogy standalone lock's functionality. They provide a quick, easy, economical access system with advanced features and functions like automatic schedules, event logs and support for 2000 doors and 5000 existing Prox. ID Cards/Badges, but with no wires to run, and no access panels or power supplies to buy or install. At its simplest, it's one Grade 1 durable wireless lock per door, installed in about an hour, all communicating to a single Gateway (each gateway controls up to 63 locks), networked to any non-dedicated Windows-based PC. In addition to Wireless Trilogy Networx's unsurpassed battery-life, exceeding 5 years, they feature new network-wide capabilities, executed from any lock or the network's PC, including emergency priority global lockdown or unlock deployed in seconds, and you can activate (non-priority) system-wide free-passage or locking modes from the PC. For existing Trilogy installations, original standalone and new Trilogy Networx locks can seamlessly share one common database hosted on free Alarm Lock DL-WINDOWS software.


  • ADA Compliant
  • Additional Information
    Flexible System Monitoring, Control and Programming
  • Backset
    2-3/4" (70mm)
  • Battery
    4 C Cell Batteries, Included
  • Device Type
    Weatherproof for Exterior Use
  • Door Thickness
    1-5/8 In. to 1-7/8 In.
  • Faceplate Size
    1-1/8" x 2-1/4"
  • Fire Rated
    180 Min
  • Function
    Electronic Keyless Access, Networked
  • Grade
    Grade 1
  • Hand
  • Handle Type
  • Keypad Type
    12 Button Programmable
  • Keys
    All metal
  • Lights
  • Material
    Brass/Bronze Base
  • Number of Users
  • Operating Temperature
    -31-151 deg F (-35-66 deg C)
  • Power
  • Programmer/
    Keypad or PC programmable
  • Rated Opening Compliant
  • Series
  • Standards
    UL10C Listed, FCC
  • Strike
    1-1/8" x 2-3/4" T Strike and 1-1/4" x 4-7/8" ASA Strike Included
  • Type
    Cylindrical Lock
  • Unit of Measure
  • Weight
