Adams Rite UltraLine 74R1 Electric Strike, for Rim Exit Device
Adams Rite UltraLine 74R1 Electric Strike, for Rim Exit Device

Let us build your organization a custom and personalized buyer portal.

Learn More

Standardize materials and improve the purchasing process for your facilities.

Adams Rite UltraLine 74R1 Electric Strike, for Rim Exit Device

SKU:
AR 74R1
Part #:
Model:
74R1-121
$295.86 - $384.07

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Reset Selections

Adding to cart… The item has been added
California Prop 65 Warning
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Related Products

Product Overview

74R1 Electric Strike is designed for rim exit devices with 3/4" (19.1 mm) Pullman latchbolts. For use in aluminum, hollow metal or wood applications. Open electrically under 25 lbs (11.3 kg) of preload. Preload is pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes. These non-handed strikes feature an ultra-compact design and adjustable stainless steel keepers with over 1,500 lbs (680.4 kg) of holding force in fail secure mode. Single solenoid operates on 12/16/24 VDC power;16 VDC Adapter VA7400-16 VDC required when using 16 VDC power. Provides electrical remote control, allowing door to open without actuation of the exit device. Field selectable fail safe/fail secure.

Resources

Warranty Information

3 Years Limited

Specifications

  • Amp Draw
    0.440A @ 12DC / 0.230A @ 24DC
  • Country of Origin
    USA
  • Door Material
    Aluminum, Hollow Metal or Wood

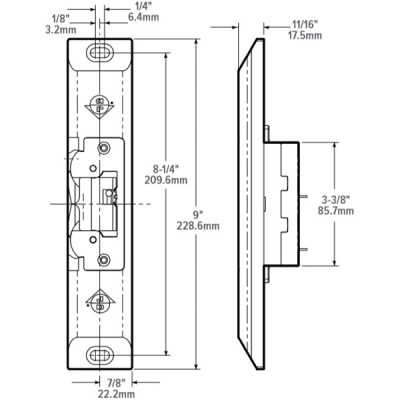

  • Faceplate Depth
    11/16" (17.5mm)
  • Faceplate Height
    9" (228.6mm)
  • Faceplate Width
    1-3/4" (44.5mm)
  • Failure Mode
    Field Selectable
  • Frame Application
    Aluminum, Hollow Metal or Wood
  • Function
    Electrical remote control, allowing door to open without actuation of the exit device
  • Grade
    Grade 1
  • Hand
    Non-Handed
  • Includes
    Mounting Plate Shims, Mounting Screws and Installation Instructions

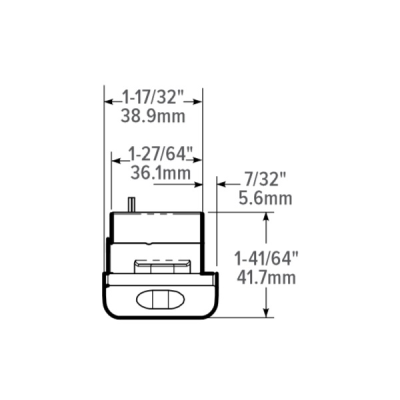

  • Metric Size
    35.7mm W x 85.7mm H x 27mm Deep (Case)
  • Power
    Wired
  • Pre Load
    Open electrically up to 25lbs (11.3kg)
  • Series
    Adams Rite 74R1, 74R2 Series Electric Strikes
  • Size
    1-13/32"W x 3-3/8"H x 1-1/16" Deep (Case)
  • Standards
    UL1034, UL294, ULC-S319, ANSI/BHMA A156.18, ANSI/BHMA A156.31
  • Static Strength
    1500 lbs (680.4kg), Fail Secure mode only
  • Strike Size
    Opening is 5/8" x 1-7/16" x 9/16" (15.9 mm x 36.5 mm x 14.3mm) Deep
  • Unit of Measure
    Each
  • Use With
    Rim Exit Devices with 3/4" (19.1mm) Pullman Latchbolts
  • Voltage
    Field selectable to match power source
  • Voltage Rating
    12/24 VDC
  • Weight
    2
