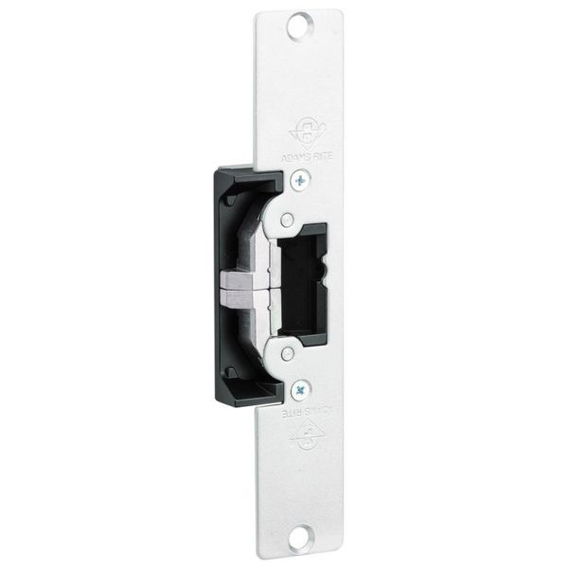

Adams Rite UltraLine 7410 Electric Strike, Flat Faceplate with Radius Corners

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

Adams Rite UltraLine 7410 Electric Strike, Flat Faceplate with Radius Corners

SKU:
AR 7410
Part #:
Model:
7410-313
$233.43 - $253.79

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Adding to cart… The item has been added
California Prop 65 Warning

Product Overview

Designed for use with Adams Rite deadlatches or cylindrical locksets with 1/2" (12.7 mm) to 5/8" (15.9 mm) latchbolt projection. For use in aluminum, hollow metal, or wood applications. Open electrically under 25 lbs (11.3 kg) of preload. Preload is pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes. This non-handed strike features an ultra-compact design and adjustable stainless steel keepers with over 1,500 lbs (680.4 kg) of holding force in fail secure mode. Single solenoid operates on 12/16/24 VDC power. Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself. The voltage is field selectable to match power source of 12/24 VDC. VA7400-16VDC voltage adapter required when using 16 VDC power, available separately. Equipped with a quick connect plug-in type connector. Field selectable fail safe/fail secure.

Warranty Information

3 Years Limited

Specifications

  • Action
    Electrical actuation unlocks the keeper, releasing the latchbolt
  • Amp Draw
    0.440A @ 12DC / 0.230A @ 24DC
  • Country of Origin
    USA
  • Door Material
    Aluminum, Hollow Metal or Wood
  • Door Thickness
    1-3/4" (44.5 mm)
  • Face Shape
    Flat Face, Round Corners
  • Failure Mode
    Field Selectable
  • Frame Application
    Aluminum, Hollow Metal or Wood
  • Function
    Remote electrical control for door
  • Grade
    Grade 1
  • Hand
    Non-Handed
  • Includes
    Mounting Screws, Mounting Tabs, Adhesive Shims, Adjustable Keeper Shim Pack, (2) Plug-In Voltage Adapters for 12/24 VDC
  • Metric Size
    35.7mm W x 85.7mm H x 27mm Deep (Case)
  • Power
    Wired
  • Pre Load
    Open electrically under 25lbs (11.3kg)
  • Series
    Adams Rite 7400 Series Electric Strikes
  • Size
    1-13/32"W x 3-3/8"H x 1-1/16" Deep (Case)
  • Standards
    UL1034, UL294, ULC-S319, ANSI/BHMA A156.18, ANSI/BHMA A156.31
  • Static Strength
    1500 lbs (680.4kg), Fail Secure mode only
  • Strike
    Strike Lip, proper length for door that closes flush with jamb edge
  • Strike Size
    Opening is 5/8" adjustable x 1-7/16" x 1/2" (15.9 mm adjustable x 36.5 mm x 12.7 mm) Deep
  • Unit of Measure
    Each
  • Use With
    For Adams Rite Deadlatches or Cylindrical Locksets with 1/2 - 5/8" Latch Bolt Projection
  • Voltage
    Field selectable to match power source
  • Voltage Rating
    12/24 VDC
  • Weight
    2
