ABH 1855 Manual Flush Bolt, Metal Door Application, Select Single or Pair
- SKU:
- ABH 1855
- Part #:
$15.77 - $33.17
Choose product options below to view Shipping Lead Time
WARNING: This product can expose you to chemicals including Lead, which is known to the State
of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Product Overview

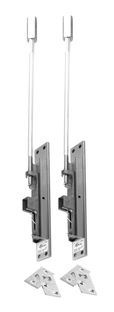

For use on hollow metal swinging doors up to 4'0" x 9'0" fire rated for up to 3 hours. Bolt has a 3/4" throw with 3/4" rod basket. Rod is 12" (from center of face to bolt end - retracted) in length and the adjustable bolt head is 1-1/2". Bolt is used to lock and unlock an inactive door when the active door is open. Installed on the lock edge of the inactive door, moving the lock lever up locks it and moving the lever down unlocks it. Select either the pair: Manual Top Bolt and Bottom Fire Bolt or the single: Manual Top Bolt. Bottom fire bolt eliminates the need for floor prep. Oversized fire bolt strike hole allows for slight door misalignment. When door is subjected to 230 degrees Fahrenheit the plug and black plastic cover will melt allowing the bolt to project locking the leaves together. UL listed.Resources
- ABH_Flush_Bolts_Sell_Sheet_Cutsheet
- ABH_1855P_Manual_Flush_Bolt_Top_&_Bottom_Bolt_Metal_Door_Application_Template
- ABH_1855S_Manual_Flush_Bolt_For_Metal_Door_(Single)_CutSheet
- ABH_1855S_Manual_Flush_Bolt_Top_Bolt_Only_Metal_Door_Application_Template
- ABH_1855_Manual_Flush_Bolt_For_Metal_Door_Template
- ABH_1855S_Coordinators_Flushbolts_And_Roller_Latches_Cross_Reference_Chart
Specifications
-
- Door Material
- Metal
-
- Hand
- Non-Handed
-
- Material
- Brass (flush bolt) and Stainless Steel (bottom fire bolt)
-
- Type
- Manual
-
- Unit of Measure
- Each
-
- Weight
- 2.5
