Product Overview

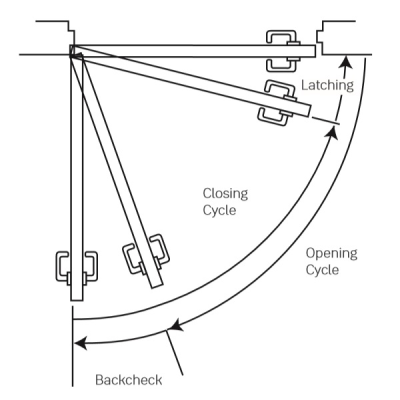

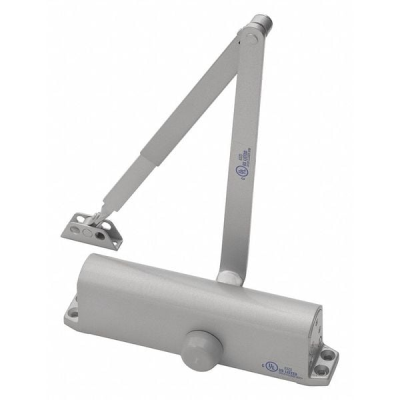

Yale YDC200 series economy door closer is a no-fuss, affordable option for aluminum storefront settings and other high volume applications. Certified to meet ANSI/BHMA A156.4, Grade 1, YDC200 series door closers provide a trusty and reliable solution to your commercial space, including retail, office buildings, more. Economical, affordable, no-fuss product offering. Rack and pinion design. Independent latch, sweep, backcheck intensity valves.Resources
Warranty Information
5 Years LimitedSpecifications
-
- Application
- Interior side of door
-
- Country of Origin
- Korea
-
- Degree Swing
- 110 degrees
-

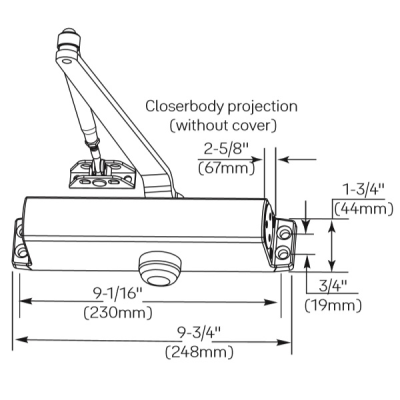

- Depth
- 2-5/8"D (Housing)
-
- Device Type
- Hydraulic
-
- Door Thickness
- 1-3/4" (44 mm)
-
- Duty Weight/Class
- Heavy Duty
-
- Function
- For Commercial, Aluminum Storefront, Hospitality
-
- Grade
- Grade 1
-
- Hand
- Non-Handed
-
- Height
- 1-3/4"H (Housing)
-
- Hold Open
- No
-
- Includes
- Mounting Hardware
-
- Length
- 9-1/16"L (Housing)
-
- Material
- Cast Aluminum Body
-
- Max. Door Weight
- 150 lbs.
-
- Mounting Style
- Tri-Style (regular arm, top jamb and parallel arm mounting)
-
- Projection
- 2-5/8"
-
- Standards
- UL Listed, cUL Listed & Designed to Meet ANSI/BHMA
-
- Unit of Measure
- Each
