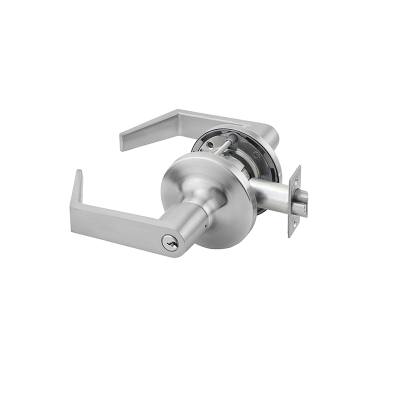

Yale 5400LN Heavy Duty Cylindrical Lockset, Classroom (F84) Function

Yale 5400LN Heavy Duty Cylindrical Lockset, Classroom (F84) Function

SKU:
YAL 5408
Part #:
Model:
086544
$428.08 - $506.82

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Adding to cart… The item has been added
California Prop 65 Warning

Product Overview

Designed for industrial and commercial use, Yale 5400LN Series heavy-duty cylindrical lockset offers rugged reliability and performance in a range of functions. With innovative features such as our Free Wheeling lever mechanism, wear-resistant chassis plates, heavy-duty lever return springs and thrubolting, this Grade 1 workhorse is favored for a variety of applications that require reliable access every day. Heavy duty rugged grade 1 construction offers greater reliability and resists wear-and-tear. Easy installation adjustable rose allows for easy adjustment on different door thicknesses. Strong and reliable ANSI/BHMA grade 1 certification for long-life and durability. Heavy duty construction features wear-resistant chassis plates, longer thread-locking thrubolts, lifetime warrantied lever return springs and stainless steel latchbolt for exceptional strength and durability. Free Wheeling lever mechanism prevents vandalism and reduces maintenance. UL fire listed for use on fire doors having a rating up to and including 3 hours.

Warranty Information

7 Years Limited

Specifications

  • ADA Compliant
    Yes
  • Application
    For Industrial, Commercial and Institutional Markets
  • Backset
    2-3/4" (70mm)
  • Bolt
    Stainless Steel
  • Bolt Throw Length
    1/2" (13mm)
  • Country of Origin
    USA
  • Door Thickness
    1-3/4 to 2" Adjustable
  • Duty Weight/Class
    Heavy Duty

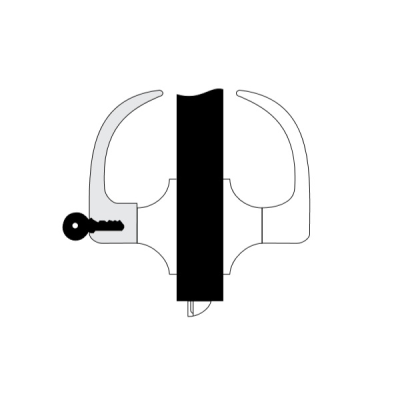

  • Function
    Classroom/Utility
  • Grade
    Grade 1
  • Hand
    Non-Handed
  • Handle Type
    Lever
  • Latch Number
    694
  • Latch Type
    Beveled Deadlatch
  • Lock Face Size
    2-1/4" X 1-1/8"
  • Rated Opening Compliant
    Yes
  • Rose/Escutcheon Size
    3-1/2" Dia.
  • Screws
    Wood/Machine Screws
  • Series
    Yale 5400LN Series Cylindrical Locks
  • Standards
    ANSI/BHMA A156.2 Grade 1, Windstorm Certified
  • Strike Height
    4-7/8"
  • Strike Number
    497
  • Strike Type
    ANSI Strike
  • Strike Width
    1-1/4"
  • Through Bolts
    Yes
  • Unit of Measure
    Each
