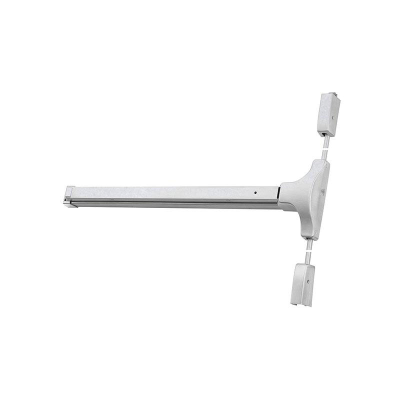

Yale 2100 Series Surface Vertical Rod Exit Device, Grade 1
Yale 2100 Series Surface Vertical Rod Exit Device, Grade 1

Yale 2100 Series Surface Vertical Rod Exit Device, Grade 1

SKU:
YAL 2110
Part #:
Model:
086023
$234.27 - $367.50

(No reviews yet) Write a Review
Reset Selections

Adding to cart… The item has been added
California Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Related Products

Product Overview

Providing a higher standard of ANSI/BHMA Grade 1 performance, the 2100 series exit device is the right choice for meeting the rigors of everyday use. In addition to traditional painted finishes, the 2100 Series is available in an attractive satin stainless steel finish for use where aesthetics are also important. Non-handed for easy installation. Featuring unique free wheeling lever mechanism that allows the lever to rotate freely even when securely locked, increasing security and preventing vandalism. ISO 9001: Designed and manufactured under a certified ISO 9001 quality system. Designed for wide stile doors. Steel interlock bracket maintains door-to-mullion relationship in fire-labeled devices. Deadlocking pullman latchbolt positively engages roller strike.

Resources

Warranty Information

3 Years Limited

Specifications

  • ADA Compliant
    No
  • Action
    Double Egress
  • Application
    For Single Swing or Pairs of Doors
  • Bolt Throw Length
    3/4" (19mm) Top, 5/8" (16mm) Bottom
  • Country of Origin
    USA
  • Dogging Options
    Hex Key Dogging/Less Dogging on Fire Rated
  • Door Height
    Up to 8' (fire) and 10' (panic)
  • Door Material
    Metal, Wood or Composite
  • Door Thickness
    1-3/4" (44 mm)
  • Duty Weight/Class
    Standard Duty
  • Function
    Surface Vertical Rod Exit Device. Exit Only.
  • Grade
    Grade 1
  • Hand
    Non-Handed
  • Includes
    Machine screws and wood door fasteners for panic hardware. Sex nuts and bolts for fire exit hardware.
  • Projection
    2-1/2" (64 mm) Active x 1-3/4" (44 mm) Depressed
  • Rated Opening Compliant
    Yes
  • Series
    Yale 2100 Series Exit Devices
  • Standards
    ANSI/BHMA A156.3 Type 2
  • Stiles
    4-1/2" (114 mm) Minimum Width
  • Strike Bottom
    790 Flush Mount
  • Strike Top
    791 Roller Type
  • Type
    Wide Stile
  • Unit of Measure
    Each
