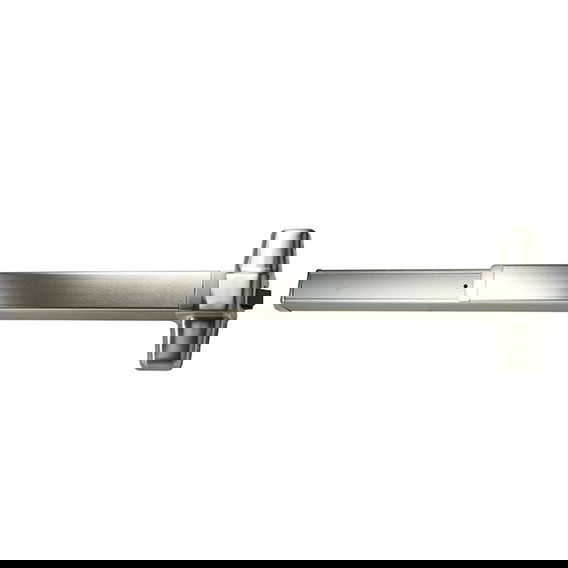

Von Duprin 98/99 Rim Exit Device (w/ & w/o Trim)

SKU:
VON 98
Part #:
Model:
VON100CD98EO326D
$1,135.72 - $1,967.22

(No reviews yet) Write a Review
Adding to cart… The item has been added

Product Overview

The Von Duprin 98/99 Series Rim Exit Devices are wide stile heavy-duty push pads for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A153.3-2001 Grade 1. The 98 Series device has a smooth mechanism case, while the 99 Series has a grooved mechanism case. The 98/99 Series have all been certified to the highest industry standards and are used in schools, hospitals and government buildings. A fluid damper decelerates the pushpad on its return stroke and eliminates most noise associated with exit device operations on all 98/99 Series devices. The rim device is non-handed. Covers stock hollow metal doors with 86 or 161 cutouts on single doors.

Warranty Information

3 Years Limited

Specifications

  • Application
    For High Use and Abuse in Institutional Like Schools, Hospitals and Government Facilities
  • BAA Compliant
    Yes
  • Bolt
    Deadlocking Latchbolt
  • Bolt Throw Length
    3/4" (19mm)
  • Country of Origin
    USA
  • Cylinder
    Not Included
  • Device Type
    Rim
  • Door Height
    84"
  • Door Material
    Wood or Metal
  • Door Thickness
    1-3/4" - 2-1/4"
  • Doors
    Single or Double doors with mullion
  • Duty Weight/Class
    Heavy Duty
  • Fasteners
    Includes screw pack for 1-3/4" (44mm) to 2-1/4" (57mm) thick metal doors or wood.
  • Fire Rated
    Non Rated
  • Grade
    Grade 1
  • Mounting Location
    Door
  • Projection
    3-13/16" Neutral / 3-1/16" Depressed
  • Reversible
    Yes
  • Series
    Von Duprin 98/99 Series Exit Devices
  • Standards
    ANSI/BHMA A156.3 2014, ANSI/UL10C (Fire Rated Only), ANSI/UL 305, CAN/ULC-S104 (Fire Rated Only), CAN/ULC-S132
  • Stiles
    4-1/2" Wide
  • Strike
    299 or 299F for Fire Rated Devices
  • Strike Height
    2-7/8"
  • Strike Width
    1-1/4"
  • Type
    Wide Stile Pushpad
  • Unit of Measure
    Each
