SDC EH20 Magnetic Door Holder, Semi-Flush Mount

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

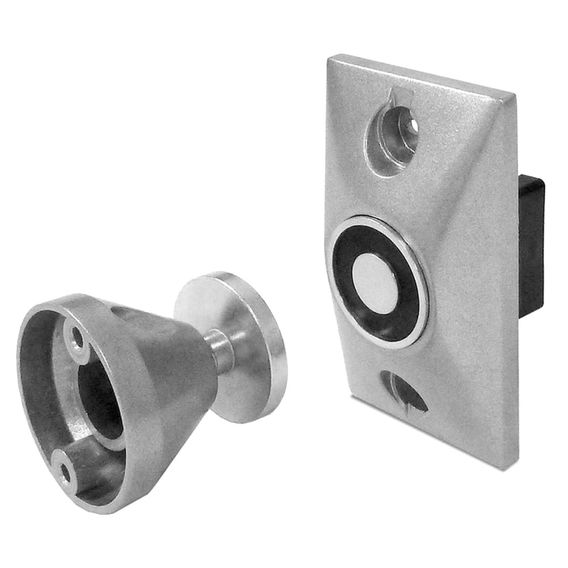

SDC EH20 Magnetic Door Holder, Semi-Flush Mount

SKU:
SDC EH20
Part #:
Model:
SDCEH201224A
Was: $128.00
Now: $99.84

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Adding to cart… The item has been added

Product Overview

SDC's EH series magnetic door holders are designed to hold doors open and release the door by remote switch or fire life safety command center activation. Primary application includes holding and releasing of fire rated doors that are required to provide a barrier for fire and smoke in an emergency or the convenience of door closure by remote control.

Choice of 25, 30, 35 or 40lbs holding force determined by units specified voltage. Reduced power supply requirements and energy costs due to low power consumption (15mA to 40mA). Field selectable high holding force comes standard, reducing stock or need to special order high holding force. Screw terminal block input connections for simple and neat wiring. Innovative installation eliminates the need for secondary alignment adjustments. Ball pivot assembly enables full plate contact and holding force. Optional adjustable rod compensates for extreme misalignment up to four inches. Slotted mounting holes enable adjustment of magnet centerline.

Warranty Information

5 Years Limited

Specifications

  • Action
    Door release and close upon power loss or fire life safety system activation
  • Country of Origin
    USA
  • Fasteners
    Hardware package, mounting bracket
  • Hardware Finish
    Satin Chromium Plated 626/US26D
  • Holding Force
    20-40 lbs. (variable based on voltage configuration)
  • Material
    Zinc Alloy
  • Mounting Style
    Semi-Flush
  • Power
    Hardwired
  • Projection
    3-1/16"
  • Rated Opening Compliant
    Yes
  • Standards
    UL 864, ULC/ORD-C225, CSFM Listed 3550-0324:0110
  • Type
    Door Holder
  • Unit of Measure
    Each
  • Use With
    Self-Closing Fire and Smoke Barrier Door
