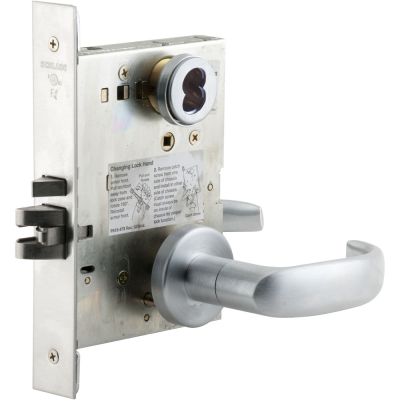

Schlage L Series Electric Mortise Lockset, Electrically Lock/Unlock Outside Lever, Outside Cylinder

SKU:
SCH L9092
Model:
SCH100L9092ELP06A626RX
$830.93 - $1,029.38

In Stock

(No reviews yet) Write a Review
Adding to cart… The item has been added
California Prop 65 Warning

Product Overview

The Schlage L Series has long been the benchmark for mortise locks. The L Series electrified mortise lock offers tremendous flexibility which allows it to meet the needs of most every wired application. It features universal input voltage and auto-detects 12 through 24 VDC for installation flexibility. Users can select mode of operation in the field by moving switch on lock chassis; Fail Safe (EL) or Fail Secure (EU). All new modular RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity; it can be added at a later time without opening the lock case. Low maximum current draw of 0.4 amps (230 mA) allows multiple locks on a single power supply. Additionally, a holding current of 0.01 amps (10 mA) produces minimal heat, eliminating hot levers in electrically locking applications and allows for reliable operation in poorly ventilated wood doors. Auto-detect 12/24 VDC. Selectable EL/EU. 10 electrified functions. Advanced features: RX, DPS, latchbolt monitor and deadbolt monitor for application flexibility. Leading energy efficiency that eliminates "hot levers". Advanced motor-driven electrified functions quieter, smoother, more secure operation.

Warranty Information

1 Year Limited

Specifications

  • ADA Compliant
    Yes
  • Action
    Auxiliary Latch Deadlocks Latchbolt When Door is Closed
  • Additional Information
    Inside Lever Always Free for Immediate Egress
  • Amp Draw
    400mA
  • Application
    For Exterior, Interior, New Construction, Retrofit Applications
  • BAA Compliant
    Yes
  • Bolt Throw Length
    3/4" (19mm)
  • Country of Origin
    Mexico
  • Device Type
    Heavy Duty Traffic, Standard, Wired Electrified
  • Door Thickness
    1-3/4" (44 mm) Standard
  • Dust Box
    Plastic
  • Electrical Rating
    Auto-Detects 12/24 VDC, 0.4 A Peak Current, 0.01 A Holding Current
  • Fire Rated
    180 Min
  • Function
    Outside Lever Continuously Locked (EL) by 12V or 24VDC; Latchbolt Retracted by Lever/Knob Inside or Key Outside
  • Grade
    Grade 1
  • Hand
    Field Reversible
  • Includes
    Hardware
  • Insert
    10-072
  • Keyway
    Keyed
  • Lock Face Size
    8" x 1-1/4"
  • Metric Size
    113 mm x 154 mm x 25 mm (case dimensions)
  • Operating Temperature
    -22 to 140 deg F (-30 to 60 deg C)
  • Operating Voltage
    12VDC/24VDC
  • Power
    Hard Wired
  • Rated Opening Compliant
    Yes
  • Screws
    Combination
  • Series
    Schlage L Series Wired Electrified Mortise Locks
  • Size
    4-7/16" x 6-1/16" x 1" (case dimensions)
  • Standards
    ANSI/BHMA A156.13-2012, Exceeds 1,000,000 ANSI Cycles
  • Strike
    1-3/16" (30 mm) Lip to Center
  • Strike Height
    4-7/8 (124mm)
  • Strike Type
    ANSI Curved Lip Strike
  • Strike Width
    1-1/4" (32mm)
  • Unit of Measure
    Each
  • Weight
    6.3
