Schlage Electronics MT11 Multi-Technology Reader, Mullion Mount
Schlage Electronics MT11 Multi-Technology Reader, Mullion Mount

Let us build your organization a custom and personalized buyer portal.

Learn More

Standardize materials and improve the purchasing process for your facilities.

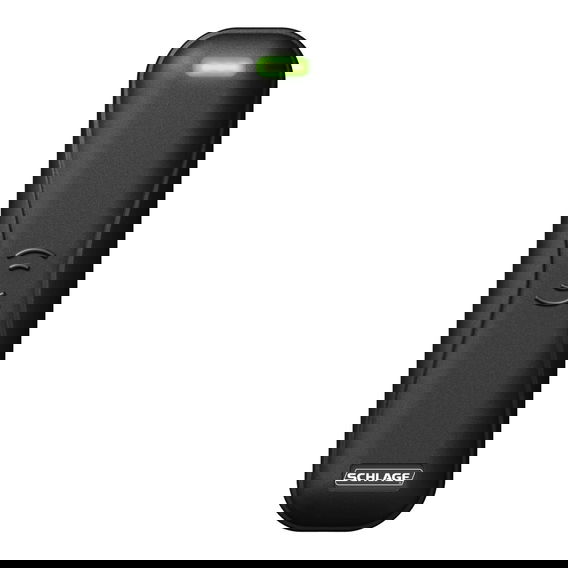

Schlage Electronics MT11 Multi-Technology Reader, Mullion Mount

SKU:
SCHE MT11
Part #:
Model:
XCE100MT11
Was: $415.00
Now: $322.14

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Reset Selections

Adding to cart… The item has been added
California Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Related Products

Product Overview

Schlage multi-technology readers are designed to simplify your access control solutions and allow a transition from existing population proximity or magnetic stripe to more secure encrypted card technology at your own pace without having to change readers as new technologies are available. Schlage multi-technology readers contain both 125 kHz proximity and 13.56 MHz contactless smart card capability in one-unit handling multiple formats simultaneously. Wiegand and RS-485 output available for simple interface with most access control panels. Compatible with NFC-enabled mobile devices. Accommodates interior, exterior, metal and non-metal installation environments. Quick-connect cable allows for easy installation. Easy-to-install mounting bracket.

Resources

Warranty Information

Limited Lifetime

Specifications

  • Application
    Interior, exterior, metal and non-metal installation environments
  • Color
    Black
  • Current Rating
    At 12VDC and 25C: Avg. 100 mA Peak 170 mA
  • Depth
    0.81"
  • Frequency
    13.56 MHz and 125 kHz
  • Function
    Access Control
  • Height
    5.91"
  • Material
    PBT Polymer
  • Mounting Style
    Mullion
  • Operating Temperature
    -40 to 158 deg F (-40 to 70 deg C)
  • Power
    Linear DC
  • Range
    Proximity: Up to 5"; MIFARE Classic: Up to 4"; MIFARE Plus: Up to 1"; MIFARE DESFire EV1 / EV2: Up to 2"; PIV credential: Up to 2.5"
  • Reader Technology
    Multi-Technology
  • Standards
    SO 14443A, 14443B, 15693; FCC Certification; IC Certification; UL 294 Listed; RED Directive (15 EU Countries); CE Mark; IP65
  • Type
    Multi-Technology
  • Unit of Measure
    Each
  • Use With
    Schlage Electronics AD/CO Series Locksets
  • Voltage
    5-16 VDC
  • Weight
    5.7 oz
  • Width
    1.72"
  • Wire Required
    18 AWG, 5 conductor stranded/shielded
