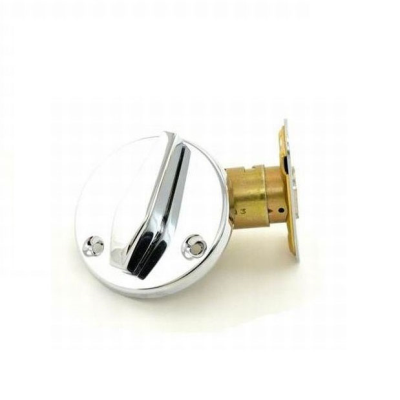

Schlage B500 Series Deadbolt, Door Bolt

SKU:
SCH B580
Part #:
Model:
SCH100B580605
$59.40 - $66.15

(No reviews yet) Write a Review
Adding to cart… The item has been added
California Prop 65 Warning

Product Overview

The B500 Series deadbolt from Schlage is the toughest, most versatile deadbolt in the business. Designed by locksmiths for locksmiths, the B500 Series deadbolt accepts every Schlage cylinder on the market, fits virtually every door you service, enhances lock strength on the jamb side of the door, and will change forever the way you look at deadbolts. Available UL listed for three-hour fire door. Quick, easy installation. Adjustable backset locks into place. Anti-pry shield protects latch from attacks. Metal dust box provides deep anchoring and added strength. Primary or auxiliary locking for commercial buildings. High security locking for residential buildings. Can be suited with virtually all Schlage levers and knobs.

Warranty Information

3 Years Limited

Specifications

  • ADA Compliant
    Yes
  • Action
    Deadbolt Thrown or Retracted by Trim Unit Only
  • Application
    For Exterior, New Construction, Retrofit Applications
  • BAA Compliant
    Yes
  • Bolt
    Brass
  • Bolt Throw Length
    1" (25.5mm)
  • Country of Origin
    Mexico
  • Device Type
    High Traffic, Heavy Duty, Commercial
  • Door Thickness
    1-3/8 to 1-3/4" (35 to 44 mm) Standard
  • Dust Box
    Metal Dust Box Reinforcer and Three 3" Screws
  • Face Shape
    Square Corner, Beveled
  • Faceplate Size
    1-1/8" x 2-1/4" (29 mm x 57 mm)
  • Function
    Door Bolt
  • Grade
    Grade 2
  • Hand
    Non-Handed
  • Includes
    Hardware
  • Keyway
    Non-Keyed
  • Lock Face Size
    1" x 2-1/4"
  • Series
    Schlage B500 Series Deadbolt Locks
  • Standards
    ANSI/BHMA A156.36-2010, Exceeds 150,000/250,000 ANSI Cycles
  • Strike Height
    2-3/4" (70mm)
  • Strike Width
    1-1/8" (28.5mm)
  • Thumbturn
    Pressure Cast Zinc, Plated to Match Finish Symbols
  • Unit of Measure
    Each
