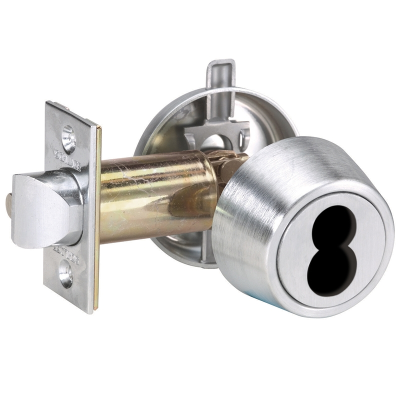

Schlage B250 Series Deadbolt, Single Cylinder x Thumbturn

SKU:
SCH B250
Part #:
Model:
SCH100B250JD626
$204.33 - $241.65

(No reviews yet) Write a Review
Adding to cart… The item has been added
California Prop 65 Warning

Product Overview

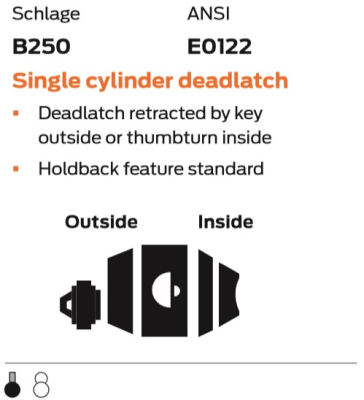

The Schlage B250 Series is a range of deadlatches designed for commercial applications. The B250 Series is ideally suited for storage cupboards and non-fire rated service ducts. The B250 is suitable for fire rated duct doors when fitted with a B160 Rose and Turn. Deadlatch B252 is retracted by key outside or inside. Holdback feature standard. Rotating thumbturn and activating holdback feature keeps latch retracted.

Warranty Information

3 Years Limited

Specifications

  • Action
    Deadlatch retracted by key outside or thumbturn inside
  • Application
    For Storage Cupboards and Non-Fire Rated Service Ducts
  • Backset
    2-3/8" (60.5mm)
  • Bolt
    Saw-resistant Hardened Steel Insert
  • Bolt Throw Length
    1" (25.5mm)
  • Country of Origin
    Mexico
  • Door Thickness
    1-3/8 - 1-3/4" (35 to 44.5 mm)
  • Dust Box
    Plastic
  • Function
    Single Cylinder
  • Grade
    Grade 2
  • Hand
    Field Reversible
  • Includes
    Hardware
  • Series
    Schlage B250 Series Deadlatch
  • Standards
    ANSI/BHMA A156.36-2010
  • Strike
    Includes Steel Reinforcer and two 1" screws
  • Strike Height
    2-3/4" (70mm)
  • Strike Type
    T-Strike
  • Strike Width
    1-1/8" (28.5mm)
  • Thumbturn
    Pressure cast zinc, plated to match finish symbols
  • Type
    Turn Deadlatch
  • Unit of Measure
    Each
