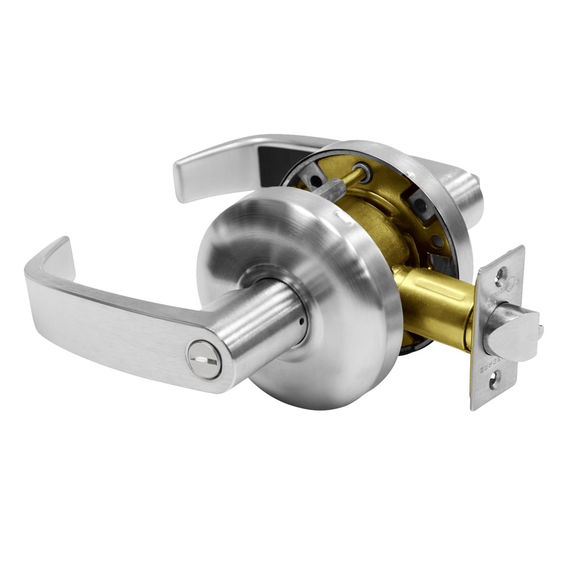

Sargent 6500 Line Cylindrical Lever Lock, Privacy/Bathroom (65) Function
Sargent 6500 Line Cylindrical Lever Lock, Privacy/Bathroom (65) Function

Let us build your organization a custom and personalized buyer portal.

Learn More

Standardize materials and improve the purchasing process for your facilities.

Sargent 6500 Line Cylindrical Lever Lock, Privacy/Bathroom (65) Function

SKU:
SAR 65U65
Part #:
Model:
1 65U65|10 K|30 L|50 03|901 28|
$94.92 - $231.05

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Reset Selections

Adding to cart… The item has been added
California Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Related Products

Product Overview

The 6500 Line standard duty key-in-lever lock exceeds ANSI/BHMA Grade 2 standards. It installs easily and is non handed and UL listed for 3 hour doors. **Additional options may be available, inquire via Chat.**

Resources

Warranty Information

1 Year Limited

Specifications

  • ADA Compliant
    Yes
  • Action
    Latch by Either Lever Unless Outside Lever is Locked by Push Button; Turn Inside Lever or Close Door to Releases Button; Emergency Button in Outside Lever Unlocks, with Use of a Blade Screwdriver in Outside Lever and Releases Inside Button
  • Backset
    2-3/4" (70mm)
  • Bolt
    Brass Latch
  • Bolt Throw Length
    1/2" (13mm)
  • Country of Origin
    Korea
  • Door Thickness
    1-3/8 - 1-3/4"
  • Doors
    Interior/Exterior
  • Dust Box
    None
  • Duty Weight/Class
    Standard Duty
  • Function
    65 Privacy/Bathroom (ANSI/BHMA F76)
  • Grade
    Grade 2
  • Hand
    Non-Handed
  • Handle Type
    Lever
  • Includes
    Hardware
  • Keyway
    Non-Keyed
  • Lock Face Size
    2-1/4" x 1-1/8" (57mm x 29mm) Self-adjusting for flat to 1/8" (3mm) in 2" (51mm) bevel
  • Lock Prep
    161
  • Material
    Zinc Dichromate Finish Steel Cylindrical Housing
  • Projection
    2-3/8"
  • Rated Opening Compliant
    Yes
  • Rose/Escutcheon Design
    K Design Rose
  • Rose/Escutcheon Size
    3-3/8" Dia.
  • Series
    Sargent 6500 Line Series Cylindrical Lever Locksets
  • Standards
    ANSI/BHMA Certified ANSI A156.2 Series 4000, Meets ANSI/UL 10C
  • Stiles
    4-1/2" (114 mm)
  • Strike Standard
    ANSI
  • Type
    Cylindrical, Lever Lock
  • Unit of Measure
    Each
  • Weight
    3.9
