Sargent 1560 Series Electromagnetic Door Holder

Sargent 1560 Series Electromagnetic Door Holder

SKU:
SAR 1560
Part #:
Model:
SAR1001560EN
$319.40 - $332.78

(No reviews yet) Write a Review
Reset Selections

Adding to cart… The item has been added

Related Products

Product Overview

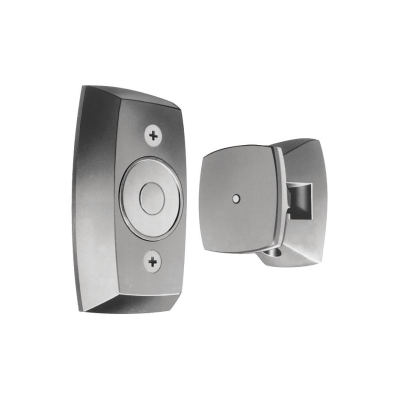

The 1560 series electromagnetic door holder is designed for use with self-closing fire and smoke barrier doors. When deactivated, helps control the spread of fire and smoke by automatically releasing doors from an open position for simultaneous closing. Use independently or with any fire or smoke detector system. Fail-safe device, when electrical power fails, doors will release to close automatically. Designed to work with Sargent door closers. Recommended vertical location is on top rail of door, within 6" of lock stile edge. Fits standard outlet box.

Resources

Warranty Information

1 Year Limited

Specifications

  • Armature Size
    2-17/32"H x 1-5/8"Deep + 1" Extension Included
  • Failure Mode
    Fail Safe
  • Hardware Finish
    Aluminum Painted 689/US28

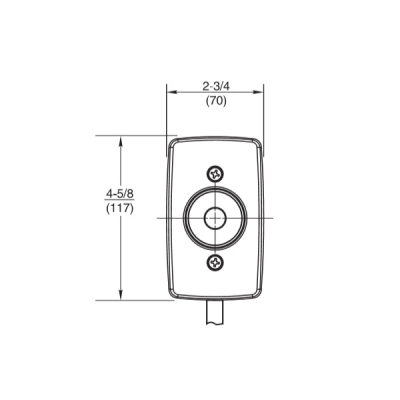

  • Height
    4-5/8"
  • Holding Force
    35 lbs.
  • Magnet
    Electromagnetic
  • Operating Voltage
    120 VAC, 24 VAC/DC, 12 VDC
  • Projection
    2-1/2" (surface mount); 1" (flush mount)
  • Rated Opening Compliant
    Yes
  • Series
    1560 Series Electromagnetic Door Holders
  • Standards
    ANSI/BHMA A156.15, UL Listed
  • Type
    Electromagnetic
  • Unit of Measure
    Each
  • Use With
    Self-Closing Fire and Smoke Barrier Door; Sargent Door Closers
  • Width
    2-3/4"
