Rixson

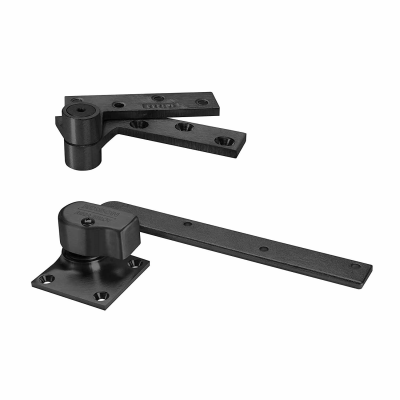

Rixson 147, 3/4" Offset Hung Pivot Set, Standard or Heavy Option
WARNING: This product can expose you to chemicals including Lead, which is known to the State
of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Product Overview
This pivot set with a 3/4" offset has a standard top pivot (180 or L180) and a bottom pivot that mounts directly to the floor. This pivot set must be used in conjunction with the M19 or ML19 intermediate pivot. Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot; each additional 30" (762mm) warrants another intermediate pivot. Doors with lead lining under the skin should select the Heavy Weight option.Warranty Information
2 Years LimitedSpecifications
-
- Additional Information
- Doors 60-90"H should use one intermediate pivot; for each additional 30" use another intermediate pivot
-
- Country of Origin
- USA
-
- Degree Swing
- 180 degrees, trim permitting
-
- Door Thickness
- 1-3/4" (44 mm)
-
- Doors
- Interior/Exterior Doors
-
- Duty Weight/Class
- Standard Duty
-
- Fire Rated
- Non Rated
-
- Hinge Prep
- Door edges must be beveled in 1/8" in 2"
-
- Material
- Brass or Bronze
-
- Max. Door Weight
- 600 lbs.
-
- Max. Door Width
- 48"
-
- Mounting Location
- Top of Door / Floor
-
- Pin Type
- Fixed
-
- Pivot Type
- 3/4" Offset Top and Bottom Set
-
- Screws
- Furnished with wood and machine screws
-
- Standards
- In compliance with ANSI/BHMA A156.4 Standards
-
- Unit of Measure
- Each
-
- Use With
- M19 intermediate pivot required
