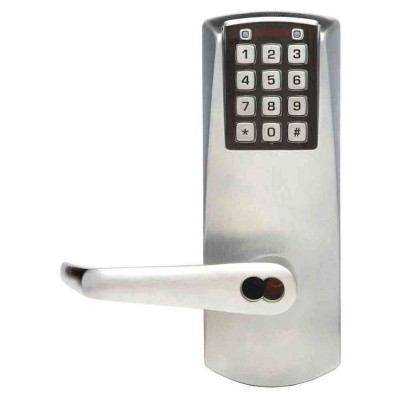

PowerPlex P206 Electronic Mortise Lock, 100 Access Codes, 1,000 Audit Events

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

PowerPlex P206 Electronic Mortise Lock, 100 Access Codes, 1,000 Audit Events

SKU:
PP P206
Part #:
Model:
SIM100P2066BLL62641
Was: $972.00
Now: $729.00

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Adding to cart… The item has been added
California Prop 65 Warning

Product Overview

Based on the PowerStar Technology, which has been used and manufactured for over 10 years, the PowerPlex Series utilizes new capacitor technology to store power longer and more efficiently. There is no handle pumping required to wake up the lock and the built-in super capacitors will hold a full charge for up to 10 weeks with no activity at the lock. The lock is perfect for small to mid-sized facilities, rarely visited remote locations, retail "Employees Only" areas and military facilities, just to name a few. Electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by PIN code, while allowing free egress. PowerPlex 2000 locks are self-powered electronic locks that do not require batteries or other power sources. The lock generates its own power with every turn of the lever, making it the most efficient and versatile electronic lockset available with virtually no maintenance costs.

Warranty Information

3 Years Limited

Specifications

  • ADA Compliant
    Yes
  • Application
    Wood or Metal Doors, Indoor or Outdoor
  • Backset
    2-3/4" (70mm)
  • Bolt Throw Length
    3/4" (19mm)
  • Device Type
    Mechanical, Combination Entry, Mortise Lock
  • Door Thickness
    1-3/4 - 2-1/4"
  • Faceplate Size
    1-1/4"W x 8"H
  • Grade
    Grade 1
  • Hand
    Non-Handed
  • Handle Type
    Long Lever
  • Includes
    Lock assembly, installation manual, template, quick reference guide, operations manual, and required hardware.
  • Keypad Type
    12 Button Vandal Resistant
  • Latch Type
    3/4" (19mm)
  • Lights
    Green and Red LED Indicator Lights
  • Operating Temperature
    -31 to 151 degrees F (-35 to 66 degrees C)
  • Programmer/
    Programming
    Lock is easily programmed via keypad without removing lock from the door or with optional software
  • Projection
    3-13/16" (exterior), 2-1/4" (interior)
  • Rated Opening Compliant
    Yes
  • Series
    PowerPlex 2000 Mechanical Lock

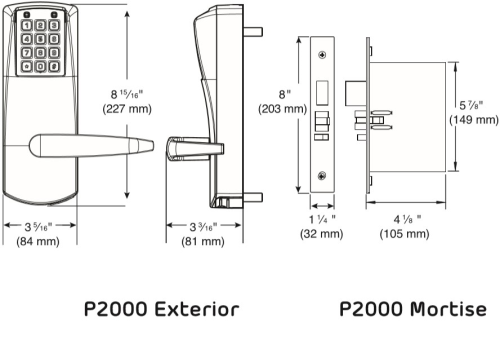

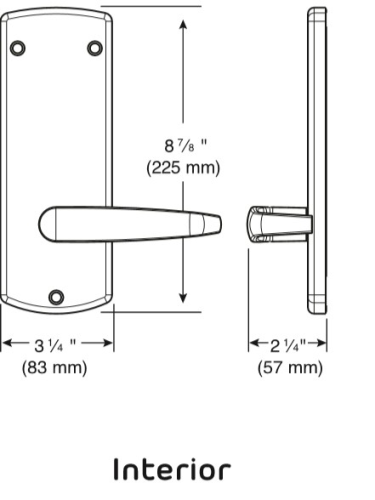

  • Size
    3-5/16"W x 8-15/16"H (exterior), 3-1/4"W x 8-7/8"H (interior)
  • Standards
    ANSI/BHMA (A156.25, A156.2, A156.13, A156.3)
  • Stiles
    5" Minimum Recommended
  • Unit of Measure
    Each
