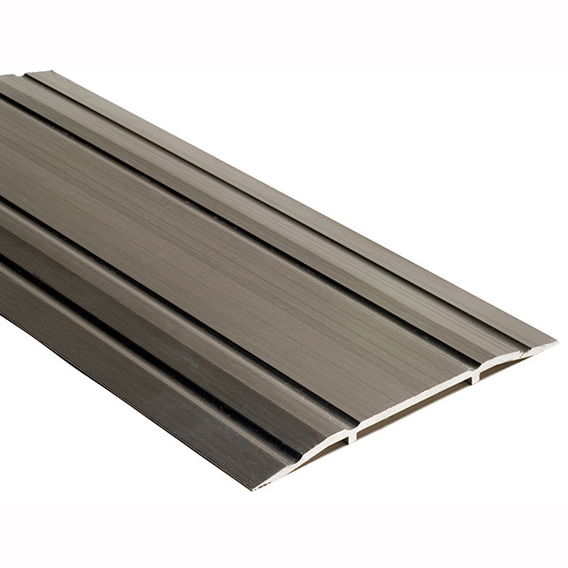

NGP 513 Saddle Threshold, 5 x 1/4"

NGP 513 Saddle Threshold, 5 x 1/4"

SKU:
NGP 513
Part #:
$30.29 - $60.59

(No reviews yet) Write a Review
Adding to cart… The item has been added

Product Overview

National Guard Products' Saddle Threshold has a fluted top. Certified by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to hollow metal fire doors rated up to 3 hrs., and wood fire doors rated up to 90 minutes.

Warranty Information

5 Years Limited

Specifications

  • ADA Compliant
    Yes
  • Additional Information
    1,000 lb. load test
  • BAA Compliant
    Yes
  • Country of Origin
    USA
  • Device Type
    Fluted Top
  • Height
    1/4"
  • Material
    Aluminum alloy 6063, T5 temper
  • Rated Opening Compliant
    Yes
  • Screws
    #10 x 1-1/2" FH zinc plated wood screws included
  • Standards
    ANSI/BHMA A156.21

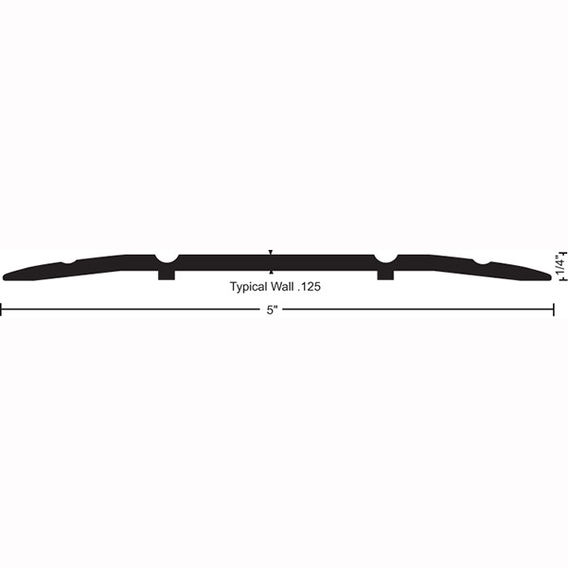

  • Thickness
    0.125" Typical Wall
  • Type
    Saddle Threshold
  • Unit of Measure
    Each
  • Width
    5"
