NGP 320 Automatic Door Bottom - Mortise

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

NGP 320 Automatic Door Bottom - Mortise

SKU:
NGP 320
Part #:
$72.45 - $105.30

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Adding to cart… The item has been added

Product Overview

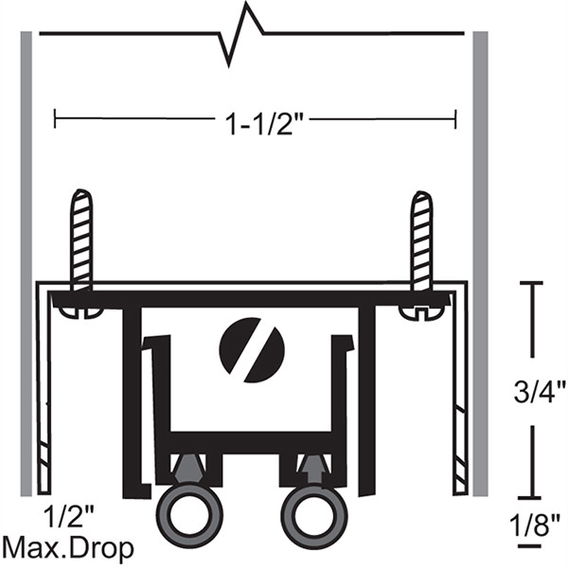

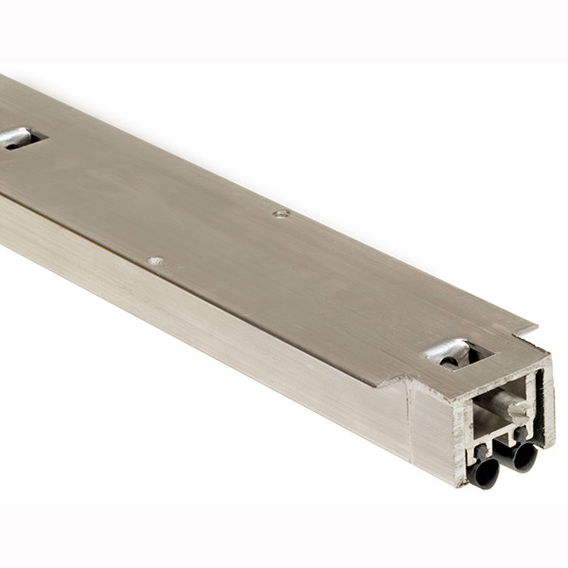

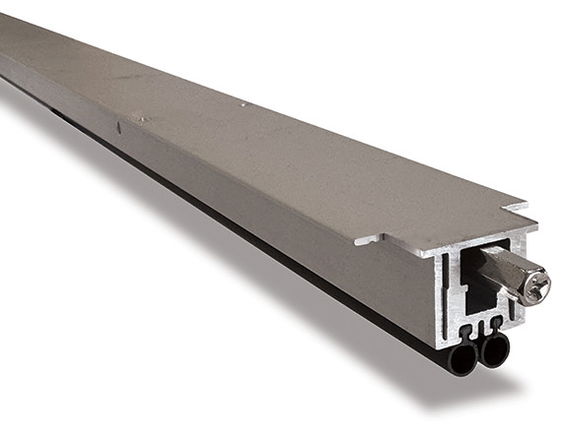

National Guard Products' 320 automatic door bottom is designed for hollow metal doors, has a neoprene, silicone or vinyl insert, and a max drop of 1/2". May be cut up to 4" to adjust for door width. Fits in 1-5/8" x 3/4" channel. A "furring strip” (not included) may be used to lower automatic door bottom when a deeper channel is used. Silicone is resistant to ozone, UV, aging, moisture and flame and recommended for areas using FM200 or Halon Fire Suppression Systems. Vinyl is moisture and flame resistant, oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration. Complies with IBC, NFPA 80 and NFPA 252 for application to hollow metal fire doors rated up to 3 hrs., and wood fire doors rated up to 90 minutes.

Warranty Information

5 Years Limited

Specifications

  • BAA Compliant
    Yes
  • Color
    Gray
  • Country of Origin
    USA
  • Hardware Finish
    Mill Finish Aluminum
  • Height
    7/8"
  • Material
    Aluminum Alloy 6063
  • Mounting Location
    Bottom door channel
  • Mounting Style
    Mortise
  • Operating Temperature
    -100 deg to 500 deg F
  • Rated Opening Compliant
    Yes
  • Type
    Automatic Door Bottom
  • Unit of Measure
    Each
  • Use With
    Use with a threshold for maximum sealing capability
  • Width
    1-1/2"
