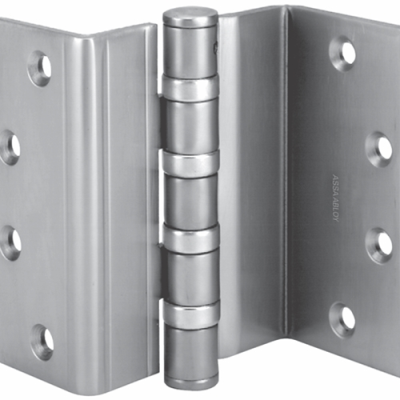

McKinney T4A3795 Heavy Weight Swing Clear Hinge

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

McKinney T4A3795 Heavy Weight Swing Clear Hinge

SKU:
T4A3795 4-1/2 26D
Part #:
Model:
MCK100T4A379541226D
Was: $105.56
Now: $71.25

(No reviews yet) Write a Review
Adding to cart… The item has been added

Product Overview

Swing clear hinges create barrier free openings by moving the hinge barrel and door edge out of the way. Recommended for use on high frequency and/or heavy wood or metal doors in schools, hospitals or other public buildings where heavy traffic is experienced. Recommended for use on high frequency and/or heavy wood or metal doors in schools, hospitals or other public buildings where heavy traffic is experienced. Pressed steel jambs require no special reinforcing. Pin is held in place by an NRP set screw, which allows the hinge to be reversible.

Specifications

  • ADA Compliant
    Yes
  • Bearing Type
    Bearing
  • Corner Type
    Square
  • Duty Weight/Class
    Heavy Duty
  • Fasteners
    Machine Screw - 1/2 x 12-24 F.H.; Wood Screw - 1-1/4 x 12 F.H
  • Fire Rated
    Non Rated
  • Gauge
    0.18
  • Grade
    Grade 1
  • Hand
    Non-Handed
  • Hinge Type
    Swing Clear Hinge
  • Knuckles
    5
  • Rated Opening Compliant
    No
  • Standards
    ANSI A117.1-1986
  • Tip Style
    Button
  • Unit of Measure
    Each
  • Use With
    High Frequency, Heavy Weight Wood or Metal Doors
