6440-MD

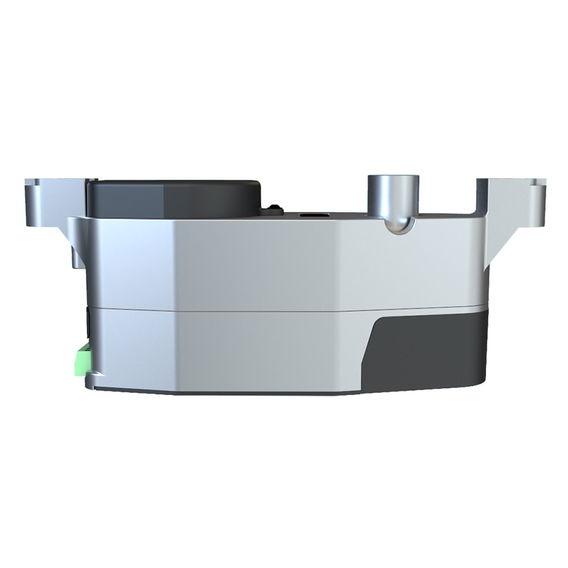

LCN 6440-MD Operator Conversion Module Only

SKU:
6440-MD
Part #:
Model:
LCN6440MD
Was: $736.00
Now: $529.92

Out of Stock

(No reviews yet) Write a Review
  • Out of Stock

Product Overview

The LCN 6400 COMPACT Series low energy automatic operator can help your facility meet basic needs related to accessibility and touchless access on interior openings.

The unique modular design makes the COMPACT Series simple and cost-effective. The core elements of the solutions are a motor gearbox assembly, a 4040XP mechanical closer and wireless or hardwired actuators. For existing openings, your can repurpose the 4040XP closer. For new openings, you can configure a complete solution to meet your needs.

The COMPACT motor gearbox assembly is surface installed on the door or top jamb and attaches to the 4040XP with a mounting plate and just 4 screws. It can be powered by a standard wall outlet or an external power supply. The operator includes a wiring harness with a wall adaptor plug that steps down the building’s 110 voltage to 24VDC. A door loop kit is included to route the wiring from the door to the wall.

Warranty Information

2 Years Limited

Specifications

  • ADA Compliant
    Yes
  • Arm Type
    REG or RwPA only
  • BAA Compliant
    Yes
  • Country of Origin
    USA
  • Cylinder
    4040XP standard cylinder only
  • Cylinder Type
    4040XP standard cylinder only
  • Hand
    Non-Handed
  • Input Voltage
    24 VDC (2A to operate)
  • Mounting Style
    Tri Mount
  • Power
    Electrohydraulic Technology
  • Series
    6400 Series COMPACT Automatic Operator
  • Standards
    ANSI 156.19; UL 228/325, UL 10C
  • Unit of Measure
    Each
  • Use With
    LCN 6400 Series Operator
  • Voltage Rating
    24VDC (75mA to power RF receiver)
