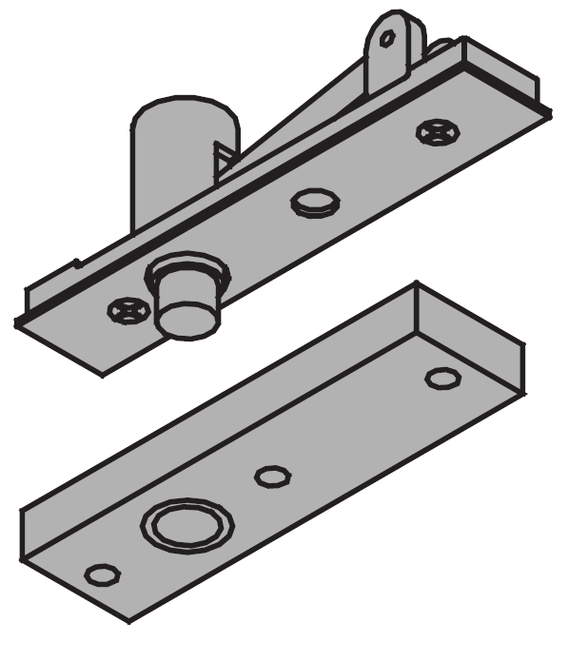

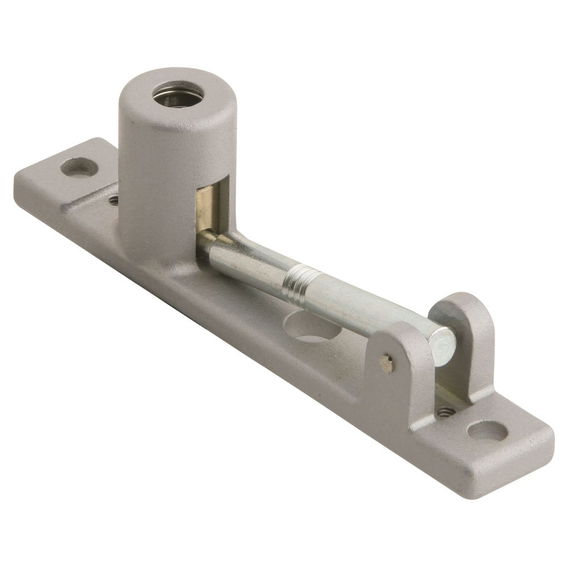

Ives 7253, Center Hung Pivot, Top Only

Ives 7253, Center Hung Pivot, Top Only

SKU:
7253 TOP US26D
Part #:
Model:
IVE1007253TOPUS26D
Was: $311.40
Now: $198.53

(No reviews yet) Write a Review
Adding to cart… The item has been added
California Prop 65 Warning

Product Overview

Pivots reduce stress on the frame by distributing the door weight throughout the floor and structure. By taking advantage of the structure strength, this makes a pivot the ideal solution for heavy doors. Center and pocket pivots also provide an aesthetic option for an opening. Ives offers a complete line of pivots with all exposed parts made of brass or stainless steel for maximum corrosion resistance, combined with precision bearings for smooth operation. The positive locking vertical adjustment mechanism allows the installer to precisely position the door and balance the load. Maximum door load 300 pounds. Recommended for use with 1-3/4" minimum door thickness. Not recommended for doors larger than 4'0" X 8'0". Easy installation, tilt on bearing and bearing pin. Adjustable floor to door clearance 3/16" to 3/4". Vertical adjustment range 3/16", with positive locking.

Specifications

  • BAA Compliant
    Yes
  • Country of Origin
    Canada
  • Door Height
    Max 8'
  • Door Thickness
    1-3/4"
  • Door Width
    Max 4'
  • Grade
    Grade 1
  • Hand
    Non-Handed
  • Material
    Cast Brass
  • Mounting Location
    Top of Door
  • Mounting Style
    Header Mount
  • Pivot Type
    Center Hung, Top Only
  • Rated Opening Compliant
    No
  • Standards
    ANSI/BHMA A156.4 C07032
  • Unit of Measure
    Each
