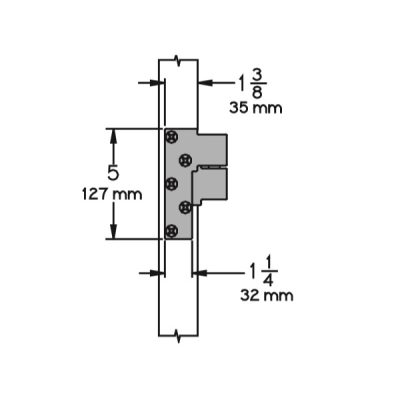

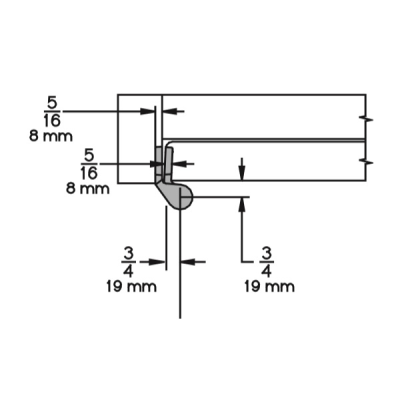

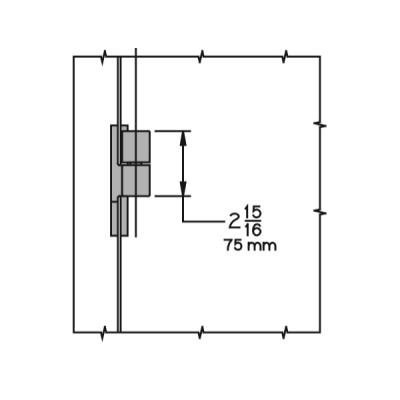

Ives 7230F, 3/4" Offset Pivot, Intermediate

Ives 7230F, 3/4" Offset Pivot, Intermediate

SKU:
IVES 7230F INT
Part #:
Model:
IVE1007230FINTLHUS32D
$343.29 - $416.48

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Adding to cart… The item has been added
California Prop 65 Warning

Product Overview

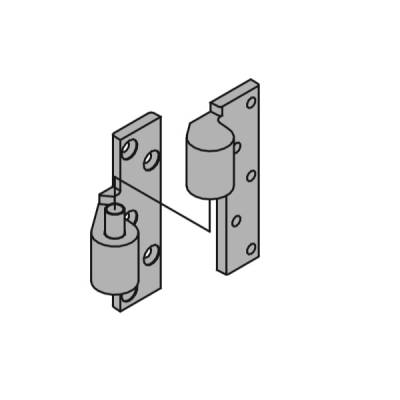

Pivots reduce stress on the frame by distributing the door weight throughout the floor and structure. By taking advantage of the structure strength, this makes a pivot the ideal solution for heavy doors. Ives offers a complete line of pivots with all exposed parts made of brass or stainless steel for maximum corrosion resistance, combined with precision bearings for smooth operation. The positive locking vertical adjustment mechanism allows the installer to precisely position the door and balance the load. This intermediate pivot is used with 7230 offset pivots. Use for door weight over the pivot set limit. Use for door heights over 7'0" and one every 2'6" as needed. Recommended for use with 1-3/4" minimum door thickness, with 1/8" bevel in 2".

Specifications

  • Application
    Use one additional pivot for every additional 100 pounds
  • BAA Compliant
    Yes
  • Country of Origin
    Canada
  • Door Height
    Use with doors over 7'
  • Door Thickness
    1-3/4" Minimum
  • Fire Rated
    UL10C Listed (3 hour)
  • Grade
    Grade 1
  • Material
    304 Stainless Steel
  • Mounting Location
    Door Jamb
  • Pivot Type
    Offset Intermediate
  • Rated Opening Compliant
    Yes
  • Standards
    ANSI/BHMA A156.4 C07311
  • Unit of Measure
    Each
  • Use With
    7230 or 7237 - 3/4" Offset Pivots
