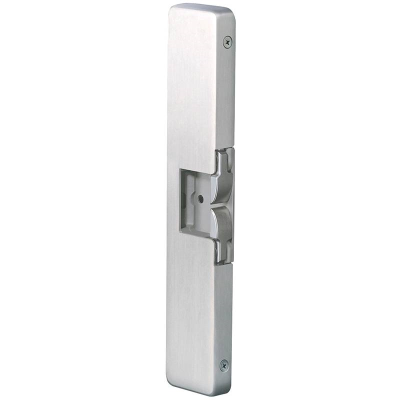

HES 9400 Electric Strike, Surface Mount, Slim Line

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

HES 9400 Electric Strike, Surface Mount, Slim Line

SKU:
HES 9400
Part #:
Model:
9400-605
$393.57 - $495.36

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Adding to cart… The item has been added
California Prop 65 Warning

Product Overview

The HES 9400 series electric strike is a slim-line, surface mounted electric strike designed to accommodate rim exit devices with a 1/2" throw Pullman latchbolt. All components are completely encased within its 1/2" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt, and install. An 1/8" spacer plate is provided to accommodate varying door gaps. The HES 9400 exceeds grade 1 standards for strength and performance. It is field selectable for fail safe/fail secure operation, for 12 or 24 VDC. The HES 9400 features a smooth cover to conceal the mounting screws and provide a sleek surface for superior looks. Additional features: tamper resistant, horizontal adjustability, and internally mounted solenoid.

Warranty Information

5 Years Limited

Specifications

  • Additional Information
    Endurance 1000000 Cycles
  • Amp Draw
    450 mA at 12 VDC/250 mA at 24 VDC
  • Application
    Indoor / Outdoor
  • BAA Compliant
    Yes
  • Bolt
    Accommodates up to a 1/2" latchbolt throw
  • Burglar Rated
    Yes
  • Configuration/
    Connectors
    Centered
  • Country of Origin
    USA

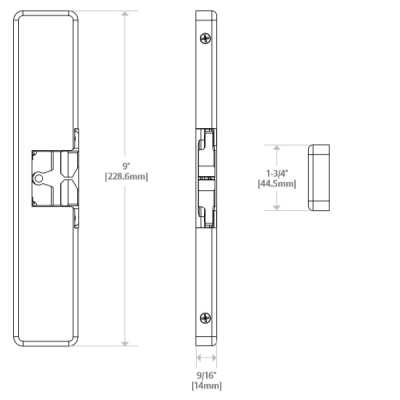

  • Depth
    9/16" (14mm)
  • Device Type
    Slim-line
  • Dynamic Strength
    70 ft-lb
  • Electrical Rating
    12/24 VDC Dual Voltage; Continuous Duty
  • Failure Mode
    Field Selectable, Fail Safe/Fail Secure
  • Fire Rated
    Non Rated
  • Frame Application
    Metal or Wood
  • Grade
    Grade 1
  • Hand
    Non-Handed
  • Height
    9" (228.6mm)
  • Includes
    Mounting hardware (metal screws only), 1/8" spacer plate (black suede)
  • Material
    Stainless Steel
  • Mounting Style
    Surface
  • Power
    Hardwired
  • Rated Opening Compliant
    No
  • Series
    HES 9400 Series Electric Strikes
  • Standards
    ANSI/BHMA A156.31, UL 1034 Burglary Resistant Listed, UL 294 Listed, UL 305 listed, RoHS compliant
  • Static Strength
    1500 lb
  • Unit of Measure
    Each
  • Use With
    Rim Exit Devices up to 1/2" Throw Latchbolt
  • Weight
    2
  • Width
    1-3/4" (44.5mm)
