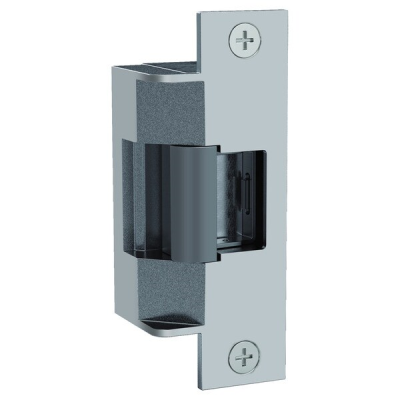

HES 7501 Electric Strike, Complete Pac

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

HES 7501 Electric Strike, Complete Pac

SKU:
7501-630
Part #:
Model:
7501-630
Was: $745.00
Now: $505.54

(No reviews yet) Write a Review
Adding to cart… The item has been added
California Prop 65 Warning

Product Overview

The HES 7501 electric strike is ideal for fire-rated applications with preload conditions caused by a warped or misaligned door, weather stripping, a smoke seal or any other condition that could cause door bind. The heavy duty stainless steel construction provides the strength and durability required to accommodate fire rated cylindrical locksets with latchbolts up to 3/4" throw. Additional features: tamper resistant, plug-in connector, trim enhancer, and internally mounted solenoid.

Warranty Information

5 Years Limited

Specifications

  • Action
    After releasing the latchbolt, the keeper returns to the locked position.
  • Additional Information
    Endurance 1000000 Cycles
  • Amp Draw
    450 mA at 12 VDC/250 mA at 24 VDC
  • Application
    Indoor
  • BAA Compliant
    Yes
  • Bolt
    Accommodates up to 3/4" latchbolt
  • Burglar Rated
    Yes
  • Configuration/
    Connectors
    Plug-in Connector
  • Country of Origin
    USA

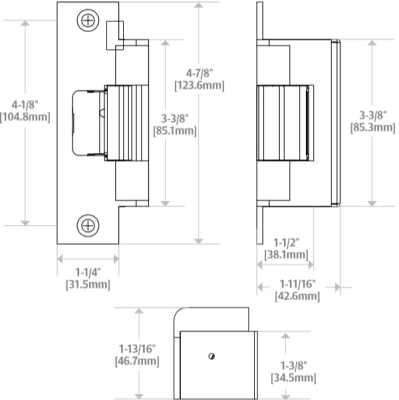

  • Depth
    1-11/16" (42.7mm)
  • Device Type
    Universal
  • Dynamic Strength
    70 ft-lb
  • Electrical Rating
    12/24 VDC Dual Voltage; Continuous Duty
  • Faceplate Height
    4-7/8"
  • Faceplate Width
    1-1/4"
  • Failure Mode
    Field Selectable, Fail Safe/Fail Secure
  • Fire Rated
    Non Rated
  • Frame Application
    Metal
  • Grade
    Grade 1
  • Hand
    Non-Handed
  • Height
    3-3/8" (85.5mm)
  • Includes
    Mounting Hardware
  • Material
    Stainless Steel
  • Power
    Hardwired
  • Pre Load
    Accommodates preload (up to 15 lbs: fail secure only)
  • Rated Opening Compliant
    Yes
  • Series
    HES 7501 Series Electric Strikes
  • Standards
    ANSI/BHMA A156.31, UL 1034 burglary-resistant listed, UL 10C fire rated, 3-hour (fail secure only), CAN/ULC-S104 fire door conformant, NFPA-252 fire door compliant, ASTM-E152 fire door compliant, UL 294 listed
  • Static Strength
    1500 lb
  • Unit of Measure
    Each
  • Use With
    Cylindrical locksets with up to 3/4" latchbolt
