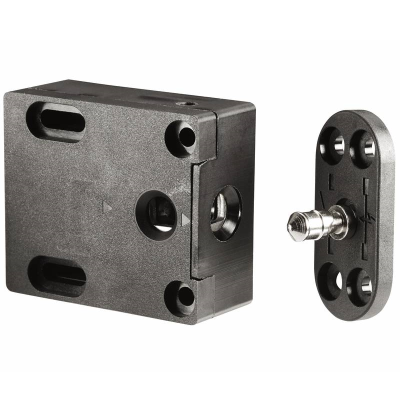

HES 610 Electric Cabinet Lock

HES 610 Electric Cabinet Lock

SKU:
HES 610
Part #:
Model:
10830001
$83.79 - $116.85

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Adding to cart… The item has been added
California Prop 65 Warning

Product Overview

The HES 610 cabinet lock can be triggered by a simple relay as part of an access control system or with a stand-alone keypad. The HES 610 is available with or without locked state monitoring and has over 200 lbs of holding force. Typical uses include securing expensive inventory, prototypes, or controlled documents. Field selectable fail secure/fail safe. Compact design fits most drawers and cabinets. Installation either at the side or front of cabinets.

Warranty Information

3 Years Limited

Specifications

  • Amp Draw
    260 mA at 12 VDC / 130 mA at 24 VDC; 140 mA at 12 VAC / 70 mA at 24 VAC
  • Application
    Indoor
  • BAA Compliant
    Yes
  • Contact Rating
    25 V / 1 A
  • Country of Origin
    USA
  • Electrical Rating
    12/24 VDC/VAC Dual Voltage
  • Failure Mode
    Field Selectable, Fail Safe/Fail Secure
  • Fire Rated
    Non Rated
  • Function
    Securing expensive inventory, prototypes, or controlled documents
  • Grade
    Grade 1
  • Hand
    Non-Handed
  • Holding Force
    200 lbs.
  • Operating Temperature
    14-104 degrees F (-10 to 40 degrees C)
  • Power
    Hardwired
  • Rated Opening Compliant
    No
  • Series
    HES 610 Cabinet Lock
  • Standards
    IP20 Rated
  • Static Strength
    200 lb
  • Unit of Measure
    Each
  • Use With
    Swinging Cabinet Doors / Drawers
