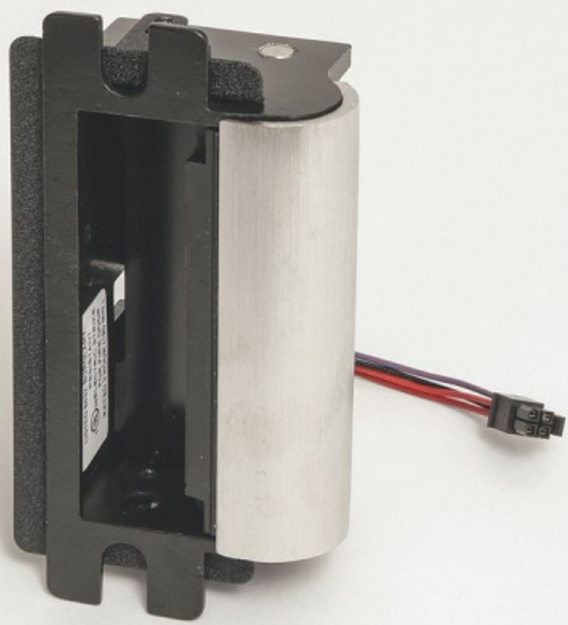

HES 1006 Electric Strike, Body Only

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

HES 1006 Electric Strike, Body Only

SKU:
HES 1006Body
Part #:
Model:
10620404
$482.46 - $587.64

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Adding to cart… The item has been added
California Prop 65 Warning

Product Overview

The 1006 series is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes. With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate. Tested to exceed 3000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1000000 cycles of operation, the 1006 is in a class of its own. Additional features: tamper resistant, plug-in connector, and full keeper shims for horizontal adjustment. UL 10C fire rated, 3-hour single door and 1-1/2 hour double door (fail secure only).

Warranty Information

5 Years Limited

Specifications

  • Additional Information
    Endurance 1,000,000 Cycles
  • Amp Draw
    450 mA at 12 VDC / 250 mA at 24 VDC
  • Application
    Indoor / Outdoor
  • BAA Compliant
    Yes
  • Bolt
    Accommodates up to 1" (25.4 mm) Deadbolt
  • Burglar Rated
    Yes
  • Configuration/
    Connectors
    Plug-in Connector
  • Country of Origin
    USA
  • Depth
    1-11/16" (43 mm)
  • Device Type
    Universal; faceplate ordered separately
  • Duty Weight/Class
    Heavy Duty
  • Dynamic Strength
    350 ft-lb (fail secure)
  • Electrical Rating
    12/24 VDC Dual Voltage; Continuous Duty
  • Fire Rated
    180 Min
  • Frame Application
    Metal or Wood
  • Grade
    Grade 1
  • Hand
    Non-Handed
  • Height
    3-5/8" (92mm)
  • Holding Force
    3000 lbs.
  • Includes
    Mounting Hardware
  • Material
    Stainless Steel
  • Power
    Hardwired
  • Rated Opening Compliant
    Yes
  • Series
    HES 1006 Series Electric Strikes
  • Standards
    ANSI/BHMA A156.31, Grade 1UL 1034 Burglary-Resistant Listed, UL 294 listed
  • Static Strength
    2500 lb
  • Unit of Measure
    Each
  • Use With
    Cylindrical Locks, Mortise Exit and Latch Locks
  • Weight
    1.7
