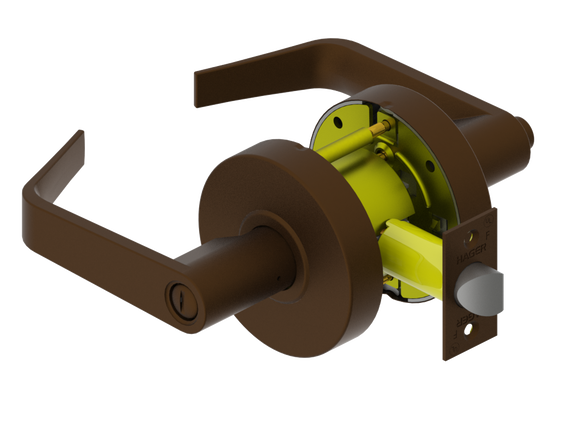

Hager 2500 Series Cylindrical Lock, Privacy Function

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

Hager 2500 Series Cylindrical Lock, Privacy Function

SKU:
HAG 2540
Part #:
Model:
129022
$52.14 - $55.54

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Adding to cart… The item has been added
California Prop 65 Warning

Product Overview

Standard duty, commercial, grade 2 cylindrical lockset. Privacy function, latchbolt operated by lever from either side. Outside lever is locked by pushbutton and unlocked by emergency release outside, operating inside lever, or closing door. No exposed mounting screws. Removable thru-bolts; failure to install thru-bolts and removable screw posts voids BHMA certification, UL rating, and warranty. UL/cUL Listed for all functions up to 3 hours "A" label single doors.

Warranty Information

5 Years Limited

Specifications

  • ADA Compliant
    Yes
  • Action
    Latchbolt operated by lever from either side. Outside lever is locked by pushbutton and unlocked by emergency release outside, operating inside lever, or closing door
  • BAA Compliant
    Yes
  • Backset
    2-3/4" (70mm) Standard
  • Bolt
    Stainless Steel
  • Bolt Throw Length
    1/2" (13mm)
  • Country of Origin
    Taiwan
  • Door Thickness
    1-3/8" - 2" (35mm - 51mm)
  • Duty Weight/Class
    Standard Duty
  • Faceplate Size
    2-1/4" x 1-1/8" (57mm x 29mm), Square Corner
  • Function
    40 - Privacy (ANSI F76A)
  • Grade
    Grade 2
  • Hand
    Non-Handed
  • Projection
    2-21/32" (67.5mm)
  • Rated Opening Compliant
    Yes
  • Rose/Escutcheon Size
    3-11/32" (85 mm) Diameter
  • Series
    2500 Series Cylindrical Lock
  • Standards
    ANSI A117.1, UL/cUL, UL10C, UL10B, BHMA A156.2, EPD
  • Strike
    4-7/8" x 1-1/4" (124mm x 32mm) Standard
  • Strike Standard
    ASA Strike
  • Through Bolts
    Yes
  • Unit of Measure
    Each
  • Weight
    1.60
