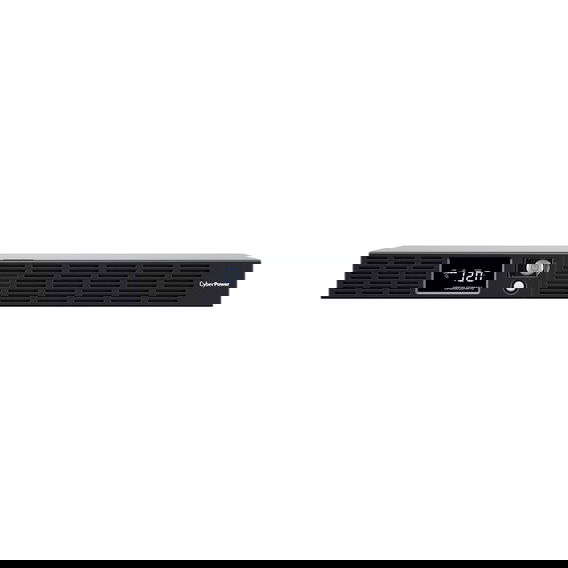

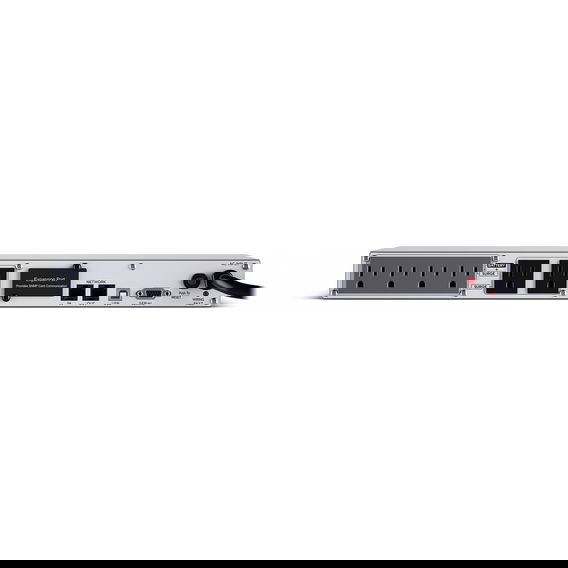

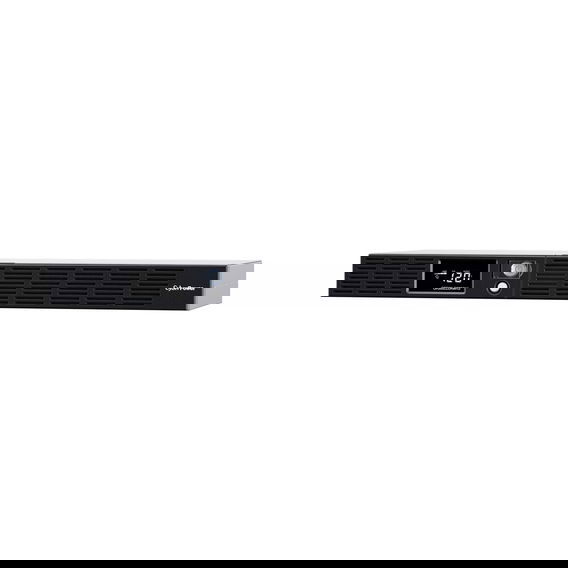

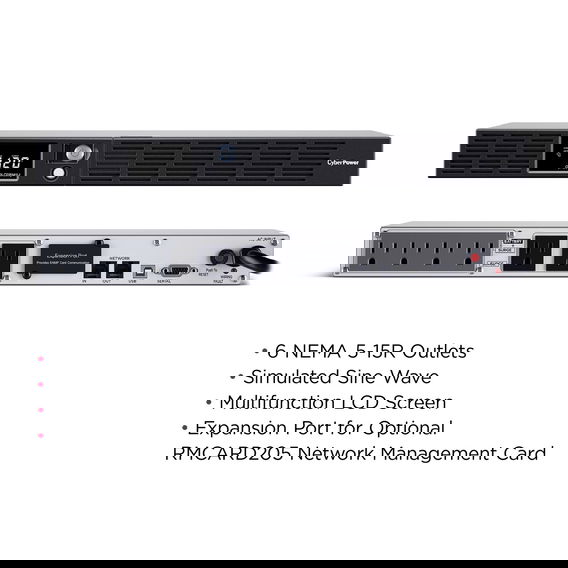

CyberPower OR500LCDRM1U Smart App LCD UPS System

SKU:
OR500LCDRM1U
Part #:
Model:
CPS-OR500LCDRM1U
Was: $219.95
Now: $206.27

(No reviews yet) Write a Review
Adding to cart… The item has been added

Product Overview

Designed with line interactive topology and simulated sine wave output, CyberPower Smart App LCD rackmount and rack/tower UPS models offer guaranteed power protection for departmental servers, networking hardware, and other equipment capable of using simulated sine wave output. These models provide cost-effective, feature-rich power protection for networking, servers, and telecom equipment. They correct minor power fluctuations without switching to battery, thereby extending battery life — essential in areas where power fluctuations occur frequently. Features include a multifunction LCD panel, Automatic Voltage Regulation (AVR), energy-saving GreenPower UPS™ design, data line protection, and management software to easily control and monitor your UPS.

Warranty Information

3 Years Limited

Specifications

  • Action
    8 Hour Recharge Time
  • Audio
    Audible Alarms: Battery Mode, Low Battery, Overload, Fault
  • Battery
    6V/7Ah Sealed Lead-Acid Battery (2ea)
  • Color
    Black
  • Communication
    USB, Relay, SNMP
  • Contact Type
    1 Dry Contact Serial Port
  • Country of Origin
    CN
  • Device Length
    10 ft Cord
  • Device Type
    Rackmount
  • Frequency
    57 Hz – 63 Hz
  • Includes
    Surge Suppression (Joules) 1150 J
  • Input Voltage
    90 VAC – 140 VAC
  • Lights
    LED Indicators: Power On, Wiring Fault
  • Material
    Metal
  • Metric Size
    43.31W x 4.45H x 23.5D (cm)
  • Mounting Location
    Rack - 1U rack height
  • Operating Temperature
    32 – 104 °F (0 – 40 °C)
  • Output Voltage
    120 VAC ± 10%
  • Ports
    HID Compliant USB Port
  • Size
    17.05W x 1.75H x 9.25D (in)
  • Software
    PowerPanel® Business
  • Standards
    RoHS Compliant; UL1778, cUL 107.1, FCC DOC Class B
  • Type
    Outlet Type: 6 – NEMA 5-15R
  • Unit of Measure
    Each
  • Use With
    Remote Management with Optional RMCARD205
  • Volts/Amps
    500VA / 300W Capacity
  • Weight
    18.5 lbs. (8.39 kgs)
