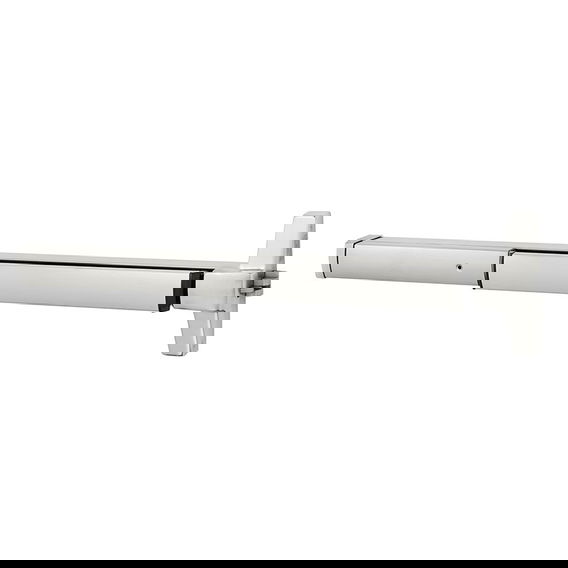

Corbin Russwin ED4200S Electronic Narrow Stile SecureBolt Exit Device

Part #:
Model:: CORED4200S605MELR

$1,680.20 - $2,642.62

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review

Reset Selections

This item is not eligible for return

Quantity

Adding to cart… The item has been added

Product Overview

Designed for applications on narrow stile full glass, aluminum and metal doors in high-use and high-abuse situations, ED4000 Series devices can be teamed with a variety of Corbin Russwin trims to provide desired functions, styles and finishes in new construction and renovations.

Resources

Warranty Information

5 Years Limited

Specifications

ADA Compliant

Yes
Additional Information

Surface applied; single-point latching
Application

For schools, factories, hotels, theaters, office, retail complexes, government buildings, etc.
Bolt

1” (25mm) wide , positive deadlocking by auxiliary bolt
Bolt Throw Length

3/4" (19mm)
Country of Origin

USA
Device Type

SecureBolt
Dogging Options

Hex Key Dogging
Door Thickness

1-3/4"
Duty Weight/Class

Heavy Duty
Fasteners

Machine Screws
Fire Rated

Non Rated
Function

Exit Only
Grade

Grade 1
Hand

Non-Handed
Material

High-grade, heat-treated, corrosion-resistant nickel steel alloy. Finished parts are brass, bronze or stainless steel; stainless steel springs; nylon bearings
Mounting Location

Surface
Projection

3-1/4" (83mm) active, 2-3/4" (70mm) dogged
Series

Corbin Russwin ED4000 Series Exit Devices
Standards

ANSI A156.3, Type 4, UL 305,NFPA 101 Life Safety Code
Stiles

2" Wide (minimum)
Strike

Surface Mount Roller Strike
Strike Size

3/8" (10mm)
Trim

not included
Unit of Measure

Each
