Product Overview

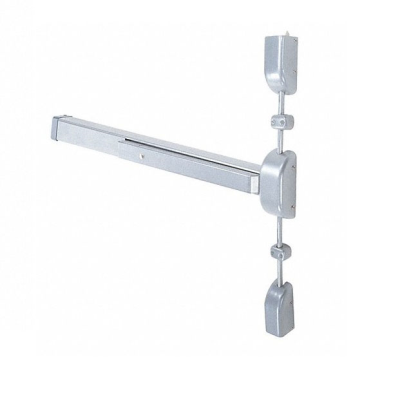

The Arrow S1150 Vertical Rod Exit Device offers a reliable and dependable solution at a price you can afford. Underwriters laboratories (UL and CUL) listed for accident hazard (panic) standard.Resources
Specifications
-
- ADA Compliant
- Yes
-
- Action
- Push Bar Exit
-
- Bolt
- Brass top/bottom latchbolt
-
- Bolt Throw Length
- 1/2" (13mm) Top, 3/4" (19mm) Bottom
-
- Country of Origin
- USA
-
- Device Type
- Wide Stile Pushpad
-
- Dogging Options
- Hex Key Dogging
-
- Door Material
- Wood or Hollow Metal
-
- Door Thickness
- 1-3/4"
-
- Duty Weight/Class
- Heavy Duty
-
- Fire Rated
- No
-
- Function
- Universal Mechanical Function
-
- Grade
- Grade 1
-
- Hand
- Non-Handed
-
- Material
- Chassis and cover are non-ferrous alloy, metal endcaps
-
- Rated Opening Compliant
- No
-
- Series
- Arrow S1150 and S1250 Series Exit Devices
-
- Standards
- ANSI/BHMA A156.3, ANSI A117.1
-
- Stiles
- 3-3/4" minimum for single door / 3-1/2" minimum for double doors
-
- Strike
- Nylon coated
-
- Strike Bottom
- 2-1/2"L x 9/16"W x 3/8"H
-
- Strike Number
- S646 Top / S23 Bottom
-
- Strike Top
- 3-3/4"H x 1-1/8"W x 3/4"D
-
- Trim
- not included
-
- Type
- Surface Vertical Rod
-
- Unit of Measure
- Each
