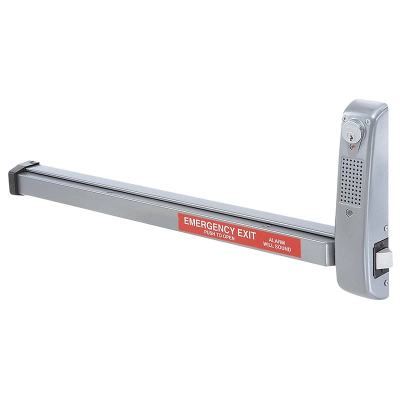

Arrow 430 Exit Alarm, Fire Rated, Auto Relatching

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

Arrow 430 Exit Alarm, Fire Rated, Auto Relatching

SKU:
ARR F430
Part #:
Model:
ARR100F430FAL
$701.33 - $828.23

Out of Stock

(No reviews yet) Write a Review
  • Out of Stock

California Prop 65 Warning

Product Overview

The Arrow 400 series alarms offer an exit device option to our alarm hardware line to help create a full line of door hardware solutions to meet the needs of your specific application. 9 V battery powered. Rolled steel touchbar assembly to fit 30" (762.0 mm) to 36" (914.40 mm) door. For outward swinging doors 1-3/4" (44.45 mm) thick with 4" (101.60 mm) minimum stile. Inside cylinder operation to arm or disarm unit using a 1-1/8" (28.57 mm) mortise cylinder. Reversible handing, unit is packed RHRB. 3/4"(19.05mm) latchbolt monitored by an electronic sensor switch. Any unauthorized movement of the latchbolt will cause the unit to go into alarm. Piercing, dual frequency pulsating horns. Rated for 90 decibels at 6 feet. Alarm sounds for two minutes then shuts down and rearms automatically. A 15 second delay feature allows authorized egress without sounding alarm.

Resources

Specifications

  • ADA Compliant
    Yes
  • Action
    Push Bar Exit
  • Additional Information
    Red LED indicator flashes when foliation occurs. Light continues to flash beyond alarm cycle and can only be turned off by the inside key.
  • Alarm/Siren
    Dual Frequency Horn, 90dB
  • Application
    For Emergency Fire Escape Doors, Nursing Home Stairwell Doors, Rear Restaurant and Theater Doors
  • Battery
    9V
  • Bolt
    3/4" Latchbolt
  • Country of Origin
    Dominican Republic
  • Cylinder
    1/8" Mortise (not included)
  • Delay
    15 Second
  • Device Length
    36 in. (can be cut to size)
  • Direction of Swing
    Outswing
  • Door Thickness
    1-3/4"
  • Fire Rated
    No
  • Hand
    Right Hand Reverse (RHR)
  • Height
    12-3/4"
  • Lights
    LED
  • Material
    Non-ferrous alloy chassis, rolled steel touchbar
  • Max. Door Width
    36"
  • Operating Temperature
    20-135 deg F
  • Power
    Battery
  • Rated Opening Compliant
    Yes
  • Reversible
    Yes
  • Standards
    ANSI A156.3-1984, ANSI A117.1-1980
  • Stiles
    4" minimum
  • Strike
    Black Nylon Coated

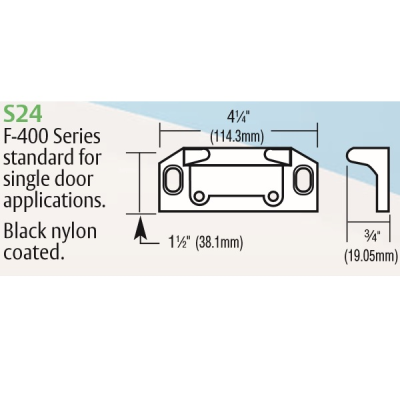

  • Strike Number
    S24
  • Strike Size
    3-5/8"H x 1-1/4"W x 3/4"D
  • Trim
    not included
  • Unit of Measure
    Each
  • Width
    2-5/8"
