SMP3PMCTX
SMP3PMCTX

Altronix SMP3PMCTX Power Supply/Charger, Single Output, 12/24VDC@2.5A

SKU:
SMP3PMCTX
Part #:
Model:
ALT100SMP3PMCTX
Was: $324.41
Now: $243.32

(No reviews yet) Write a Review
Reset Selections

Adding to cart… The item has been added
California Prop 65 Warning
WARNING: This product can expose you to chemicals including Nickle, Nickel Oxcide, Cadmium, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Related Products

Product Overview

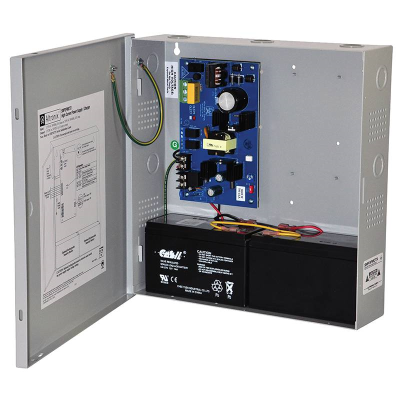

Altronix SMP3PMCTX power supply/charger converts a low voltage AC input into a 12 VDC or 24 VDC output @ 2.5A continuous supply current. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power. Filtered and electronically regulated output. Short circuit and thermal overload protection. Built-in charger for sealed lead acid or gel type batteries (not included). Automatic switch over to stand-by battery when AC fails. Battery short circuit protection (circuit breaker). AC fail and low battery supervision (form "C" contacts). AC input and DC output LED indicators.

Resources

Warranty Information

Limited Lifetime

Specifications

  • Battery
    Not Included
  • Color
    Gray
  • Country of Origin
    USA
  • Depth
    3.25"
  • Device Type
    Power Supply/Charger
  • Electric Options
    Single Output
  • Height
    13.5"
  • Includes
    Battery Leads, Cam Lock
  • Material
    Steel
  • Operating Temperature
    32-120 deg F (0-49 deg C) with Relative Humidity 85 +/- 5 percent
  • Operating Voltage
    115/230 VAC Input; 12/24 VDC Output
  • Output Current
    2.5 A
  • Size
    1/2" x 3/4" Knockout
  • Standards
    RoHS, CE
  • Unit of Measure
    Each
  • Weight
    7.9
  • Width
    13"
